Analog Devices Inc. HMC547LC3TR: High-Performance RF Switch

The HMC547LC3TR from Analog Devices Inc. is a cutting-edge RF (Radio Frequency) switch that is designed to cater to the demanding requirements of high-frequency and broadband applications. This high-performance component is a testament to Analog Devices' commitment to providing advanced solutions for RF signal routing in various electronic systems.

With its wide frequency range from DC to 20 GHz, the HMC547LC3TR offers exceptional versatility, making it suitable for a broad spectrum of applications, including but not limited to wireless infrastructure, test equipment, and satellite communication systems. Its non-reflective single-pole, double-throw (SPDT) configuration ensures that it can efficiently switch between two output ports without signal reflection, which is crucial for maintaining signal integrity in high-speed communication systems.

The device boasts an impressive insertion loss of 1.6 dB typical at 20 GHz, which minimizes the loss of signal power during the switching process. This feature, combined with its high isolation of 45 dB typical at 20 GHz, ensures that crosstalk between channels is significantly reduced, resulting in clearer and more reliable signal transmission.

One of the standout features of the HMC547LC3TR is its fast switching speed. With a rise and fall time of just 1 ns and a delay of 9 ns, it can quickly switch between states, which is essential for applications that require rapid signal routing changes. The switch operates using a single positive control voltage from 0 to +5V, simplifying the control interface and reducing the complexity of the overall design.

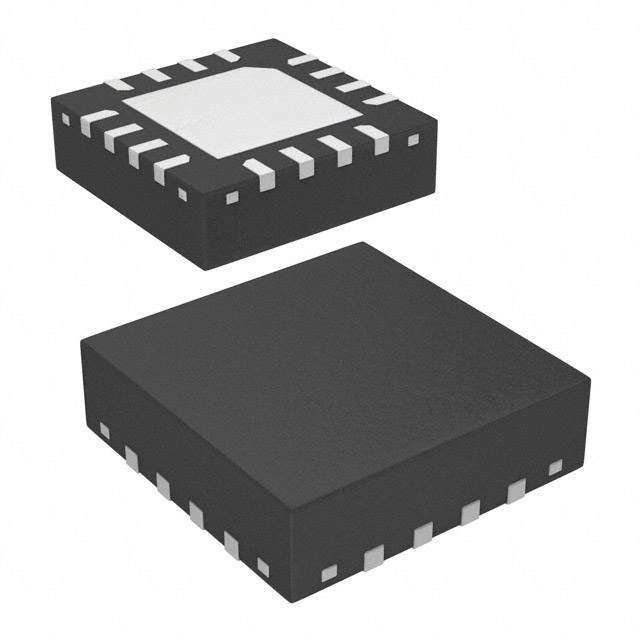

Encased in a compact 3x3 mm ceramic QFN package, the HMC547LC3TR is designed for space-constrained applications where size and weight are critical considerations. The switch is also RoHS compliant, ensuring that it meets the latest environmental standards and regulations.

Overall, the HMC547LC3TR from Analog Devices Inc. is a robust and efficient solution for designers who require a high-quality RF switch that delivers excellent performance across a wide range of frequencies. Its combination of low insertion loss, high isolation, and fast switching capabilities make it an invaluable component in the development of sophisticated RF systems.
