The HMC141LH5 is a high-performance, passive double-balanced mixer product by Analog Devices Inc., designed to cater to the demanding requirements of RF and microwave applications. This mixer is a part of Analog Devices' Hittite Microwave products, known for their reliability and precision.

Key Features

• Frequency Range: The HMC141LH5 operates over a broad frequency range, making it versatile for various applications. It is capable of supporting RF and LO frequencies from 8 GHz to 16 GHz and IF frequencies from DC to 4 GHz.
• Conversion Loss: With a typical conversion loss of 9 dB, this mixer maintains excellent signal integrity, ensuring minimal signal degradation during the conversion process.
• Isolation: The device offers exceptional isolation between ports, with typical isolation of 40 dB, which helps to reduce signal leakage and maintain the purity of the signal paths.
• LO/RF Input Power: It can handle an LO/RF input power of up to +13 dBm, providing a robust performance even under higher power conditions.

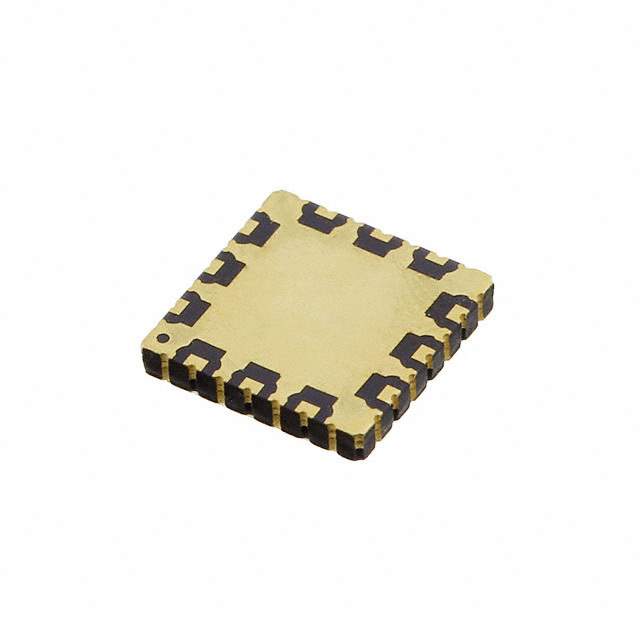

• Package: The HMC141LH5 comes in a compact 5x5 mm SMT package, which is suitable for space-constrained applications and allows for efficient use of PCB real estate.

Applications

Due to its wide frequency range and excellent performance characteristics, the HMC141LH5 is ideal for a variety of applications, including:

• Point-to-Point and Point-to-Multipoint Radios
• Military and Space
• Test Equipment and Sensors
• Satellite Communications

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability, and the HMC141LH5 is no exception. It is manufactured to meet the highest industry standards and is subjected to rigorous testing to ensure performance and durability in even the most challenging conditions.

Conclusion

The HMC141LH5 from Analog Devices Inc. is a testament to the company's dedication to providing advanced solutions for RF and microwave signal processing. With its wide frequency range, low conversion loss, and high isolation, this mixer stands out as a top choice for engineers looking for a reliable and efficient mixing solution.
