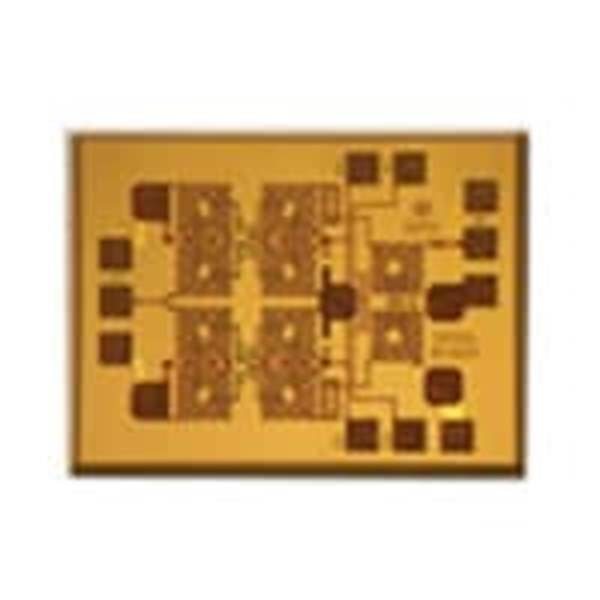

Analog Devices Inc. HMC520-SX Product Overview

The HMC520-SX from Analog Devices Inc. is a high-performance, GaAs MMIC SMT PHEMT Low Noise Amplifier (LNA) designed to offer exceptional signal amplification for a wide range of applications. This RF/microwave amplifier operates within the 17 to 40 GHz frequency range, making it an ideal choice for demanding applications in the fields of telecommunications, radar systems, electronic warfare, and satellite communications.

Key Features

• Frequency Range: The device operates across a broad frequency range from 17 GHz to 40 GHz, catering to various high-frequency applications.
• Gain: It provides a high gain of 14 dB typical, ensuring that weak signals are effectively amplified for further processing.
• Noise Figure: With a low noise figure of 2.5 dB typical, the HMC520-SX offers clear signal amplification with minimal added noise, preserving signal integrity.
• Output Power: The device delivers an output power of +19 dBm at 1 dB compression point, providing a robust signal for downstream components.
• Input/Output Return Loss: It features excellent input and output return loss, minimizing signal reflections and losses.
• Supply Voltage: The LNA operates with a supply voltage of +3.3V, accommodating common system power rails.

Applications

• Point-to-Point Radios
• Point-to-Multipoint Radios & VSAT
• Test Equipment & Sensors
• Military & Space
• Fiber Optic Applications

Package and Quality

The HMC520-SX comes in a RoHS compliant, 4x4 mm surface-mount package that is compatible with automated assembly equipment, facilitating easy integration into a variety of systems. The device is also built to meet the stringent quality standards expected from Analog Devices Inc., ensuring reliability and performance consistency across different environmental conditions.

Overall, the HMC520-SX from Analog Devices Inc. represents a blend of performance, quality, and versatility, making it a superior choice for professionals seeking an LNA that can deliver exceptional results in high-frequency applications.
