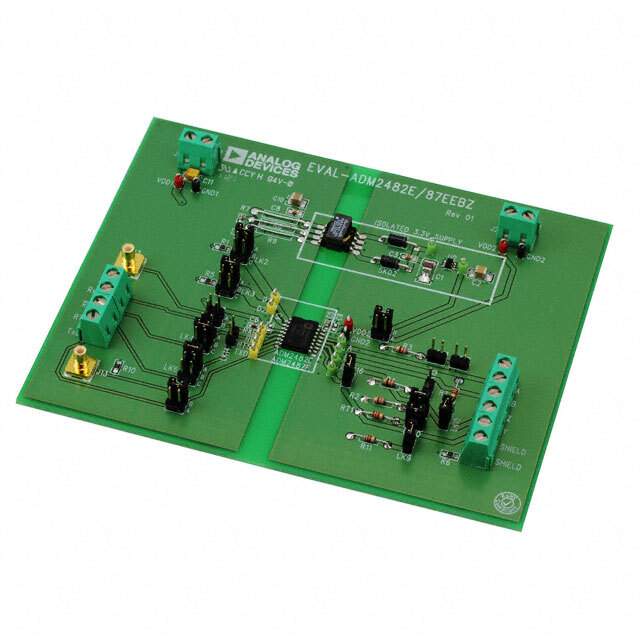

The EVAL-ADM2487EEB5Z is an evaluation board designed by Analog Devices Inc. to facilitate the testing and development of the ADM2487E, a robust, high-speed, half-duplex iCoupler® isolated RS-485 transceiver. This product is ideal for engineers who require a reliable communication interface for industrial, instrumentation, and networked applications where electromagnetic interference (EMI) could be a concern.

Key Features

• Isolated RS-485 Transceiver: The ADM2487E provides galvanic isolation up to 2.5kV RMS, which is crucial for protecting sensitive electronic equipment from voltage spikes and ground loops.
• High Data Rates: Capable of supporting data rates up to 500 kbps, the board is well-suited for applications that require fast data transmission.
• Integrated iCoupler Technology: This technology enables the ADM2487E to combine a 3-channel isolator, a three-state differential line driver, and a differential input receiver into a single package.
• Thermal Shutdown Protection: The device features thermal shutdown protection to prevent damage from overheating.
• Easy to Use: The EVAL-ADM2487EEB5Z comes with convenient access points for measuring the performance of the ADM2487E, including test points and SMA connectors.

Applications

The versatile nature of the EVAL-ADM2487EEB5Z makes it suitable for a wide range of applications, including:

• Industrial field networks such as PROFIBUS, MODBUS, and Industrial Ethernet
• Building automation and HVAC control systems
• Networked sensors and actuators
• Process control and automation systems

Advantages

Utilizing the EVAL-ADM2487EEB5Z offers several advantages for developers:

• The board provides a quick and simple way to evaluate the features and performance of the ADM2487E transceiver without the need to design a custom circuit.
• It reduces time-to-market by allowing rapid prototyping and testing.
• The evaluation board is supported by comprehensive documentation and resources from Analog Devices, making it easier to integrate into existing projects.

Overall, the EVAL-ADM2487EEB5Z evaluation board is a powerful tool for any developer looking to leverage the performance and reliability of the ADM2487E isolated RS-485 transceiver in their designs.
