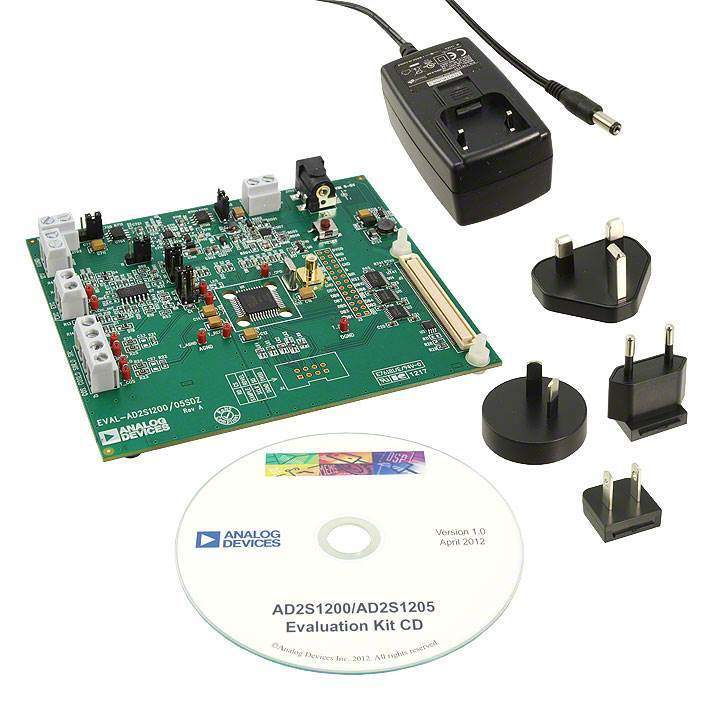

EVAL-AD2S1200SDZ - Analog Devices Variable Resolution, 12-Bit to 16-Bit R/D Converter Evaluation Board

The EVAL-AD2S1200SDZ is a comprehensive evaluation board designed for the AD2S1200, a 12-bit to 16-bit resolution variable resolver-to-digital converter (RDC) from Analog Devices Inc. This versatile component is specifically engineered to provide high-performance solutions for angular position and velocity measurement in industrial applications such as servo control, robotics, and motor feedback systems.

Key Features:

• High Resolution: The AD2S1200 offers a selectable resolution from 12-bit to 16-bit, allowing for precise and accurate position and velocity data.
• Flexible Input Signal Range: It can accommodate a wide range of resolver signals, making it suitable for various resolver types and sizes.
• Continuous Tracking: The RDC features continuous tracking of the resolver's angular position and velocity, ensuring real-time monitoring and control.
• Robust Interface: The board includes a user-friendly interface with easy access to all the critical pins and signals of the RDC, facilitating quick setup and testing.
• Onboard Reference: An onboard precision voltage reference is included to ensure the accuracy and stability of the conversion process.
• Dynamic Testing: The EVAL-AD2S1200SDZ supports dynamic testing, allowing users to evaluate the performance of the AD2S1200 under various conditions and frequencies.

Applications:

• Industrial servo control systems
• Robotics
• Motor feedback systems
• Process control
• Automotive applications

The evaluation board is designed to showcase the AD2S1200's capabilities in a user-friendly environment. It provides engineers and developers with a powerful tool to explore and optimize the performance characteristics of the RDC in their specific applications. With its comprehensive feature set and flexible design, the EVAL-AD2S1200SDZ is an ideal platform for developing advanced control systems requiring high precision angular measurements.
