EVAL-AD2S1205SDZ

Part No EVAL-AD2S1205SDZ
Manufacturer Analog Devices Inc.
Catalog Evaluation and Demonstration Boards and Kits
Description BOARD EVAL FOR AD2S1205 / AD2S1205 Resolver-to-Digital Interface Evaluation Board
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation and Demonstration Boards and Kits
Mfr Analog Devices Inc.
Package Box
Type Interface
Function Resolver-to-Digital
Embedded No
Utilized IC / Part AD2S1205
Primary Attributes 12-Bit Resolution, 1250 rps Max or 1024 Pulses/Rev.
Supplied Contents Board(s)
Base Product Number AD2S1205
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Other Names -2735-EVAL-AD2S1205SDZ,EVALAD2S1205SDZ,EVAL-AD2S1205SDZ-ND,505-EVAL-AD2S1205SDZ
Standard Package 1
Win Source Part Number 1155187-EVAL-AD2S1205SDZ
Ultra Librarian 3D Model Ultra Librarian EVAL-AD2S1205SDZ CAD Model

Description

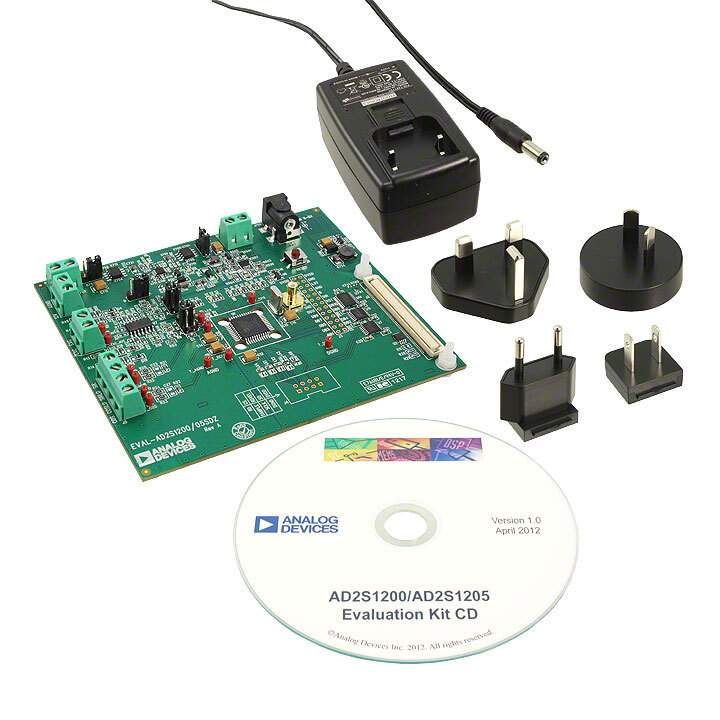

EVAL-AD2S1205SDZ Evaluation Board from Analog Devices Inc.

The EVAL-AD2S1205SDZ is a comprehensive evaluation platform designed for the AD2S1205, which is a high-performance, 12-bit resolution variable resolution, monolithic resolver-to-digital converter (RDC) from Analog Devices Inc. This product is tailored specifically for applications that require high dynamic performance, such as servo drives and electric vehicle powertrains. The EVAL-AD2S1205SDZ allows designers and engineers to thoroughly assess the capabilities of the AD2S1205 RDC in their specific application environments.

At the heart of the evaluation board is the AD2S1205 chip, which stands out with its ability to provide a complete position, velocity, and acceleration output by directly interfacing with resolver sensors. The RDC supports a wide tracking rate of up to 3125 rps (revolutions per second), making it suitable for high-speed motor control applications. Additionally, it boasts an excitation frequency range of 2 kHz to 20 kHz, providing flexibility in various control systems.

The EVAL-AD2S1205SDZ is designed with user accessibility in mind. It includes a 16-bit parallel interface for easy connection to a host processor or a data acquisition system. The evaluation board also features multiple test points and a provision for various configuration settings, which facilitate comprehensive testing and performance analysis.

For enhanced functionality, the board comes equipped with a reference signal buffer, fault detection circuitry, and a programmable input gain amplifier. These features ensure reliable and accurate resolver-to-digital conversion even in the most demanding industrial environments. The fault detection circuitry is particularly useful for safety-critical applications as it provides an immediate indication of any system anomalies.

The EVAL-AD2S1205SDZ is accompanied by detailed documentation, including a user guide that outlines setup instructions, configuration options, and operational guidelines. This information is crucial for users to maximize the potential of the AD2S1205 and to streamline the process of integrating the RDC into their systems.

Overall, the EVAL-AD2S1205SDZ evaluation board from Analog Devices Inc. is an essential tool for engineers who require a high-accuracy, robust solution for resolver-to-digital conversion in their motor control and positioning systems.
