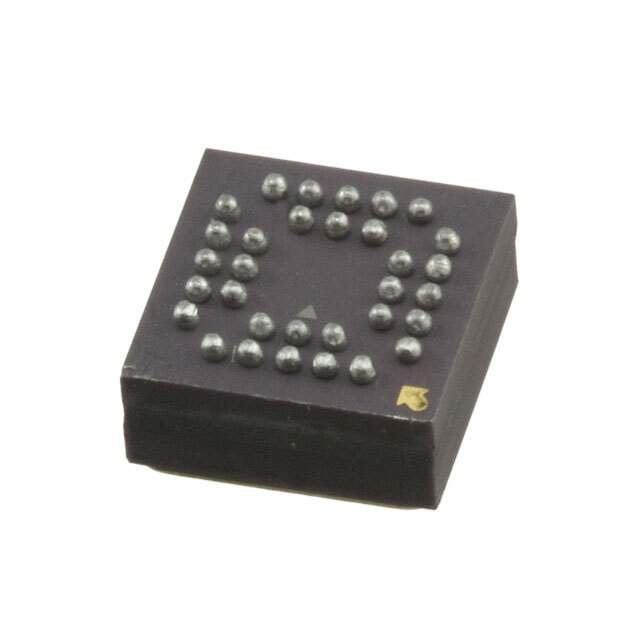

ADXRS622BBGZ

Part No ADXRS622BBGZ
Manufacturer Analog Devices Inc.
Catalog Motion Sensors - Gyroscopes
Description plus,minus250temperature/sec Yaw Rate Gyroscope | IC GYROSCOPE YAW RATE 32CBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Analog Devices Inc.
Packaging Box
Type Analog
Axis Z (Yaw)
Range °/s ±300
Sensitivity (mV/°/s) 7
Bandwidth 0.01Hz ~ 2.5kHz
Output Type Analog Voltage
Supply Voltage (V) 4.75V ~ 5.25V
Supply Current 3.5mA
Features Adjustable Bandwidth, Temperature Sensor
Temperature Range - Operating -40°C ~ 105°C
Manufacturer Package 32-BFCBGA
Family Part Number ADXRS622
Manufacturer Pack Quantity 20
MSL Level 1 (Unlimited)
Win Source Part Number 1142775-ADXRS622BBGZ
Manufacturer Homepage www.analog.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ADXRS622BBGZ CAD Model

Description

Introducing the ADXRS622BBGZ Gyroscope from Analog Devices Inc.

The ADXRS622BBGZ is a high-performance, vibration-resistant angular rate sensor (gyroscope) designed by Analog Devices Inc., a leader in semiconductor design and manufacturing. This gyroscope is part of the ADXRS family, which is renowned for its reliability and precision in demanding applications.

Key Features

  • High Precision: The ADXRS622BBGZ offers excellent angular rate sensing with a sensitivity of 12.5 mV/°/sec and a measurement range of ±300°/sec, ensuring accurate data for critical applications.
  • Vibration Immunity: Engineered to withstand harsh environments, this device exhibits superior vibration rejection, making it ideal for industrial and automotive systems where stability and performance are non-negotiable.
  • Temperature Stability: With a built-in temperature compensation, the gyroscope maintains consistent performance over a wide temperature range of -40°C to +105°C.
  • Robust Design: The ADXRS622BBGZ is housed in a compact 7mm x 7mm x 3mm CBGA (Ceramic Ball Grid Array) package, providing a robust and durable solution that can easily be integrated into various designs.

Applications

  • Automotive vehicle dynamics
  • Platform stabilization
  • Robotics
  • Industrial instrumentation
  • High-precision machinery control

Technical Specifications

Parameter Value
Sensitivity 12.5 mV/°/sec
Measurement Range ±300°/sec
Temperature Range -40°C to +105°C
Package CBGA-32
Supply Voltage 5V

The ADXRS622BBGZ from Analog Devices Inc. is a testament to the company's commitment to providing cutting-edge technology for precise motion sensing. With its exceptional performance and robustness, the ADXRS622BBGZ is the go-to gyroscope for developers and engineers looking for a reliable sensor to enhance the capabilities of their systems.
