ADXL357BEZ-RL7

Part No ADXL357BEZ-RL7
Manufacturer Analog Devices Inc.
Catalog Motion Sensors - Accelerometers
Description ACCEL 10-40G I2C/SPI 14CLCC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Analog Devices Inc.
Packaging Reel
Type Digital
Axis X, Y, Z
Acceleration Range ±10g, ±20g, ±40g
Sensitivity (LSB/g) 12800 (±10g) ~ 51200 (±40g)
Bandwidth 1Hz ~ 1kHz
Output Type I2C, SPI
Supply Voltage (V) 2.25V ~ 3.6V
Features Adjustable Bandwidth, Selectable Scale
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 14-CLCC
Supplier Device Package 14-CLCC (6x6)
Part Number Series ADXL357
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809950-ADXL357BEZ-RL7
Ultra Librarian 3D Model Ultra Librarian ADXL357BEZ-RL7 CAD Model

Description

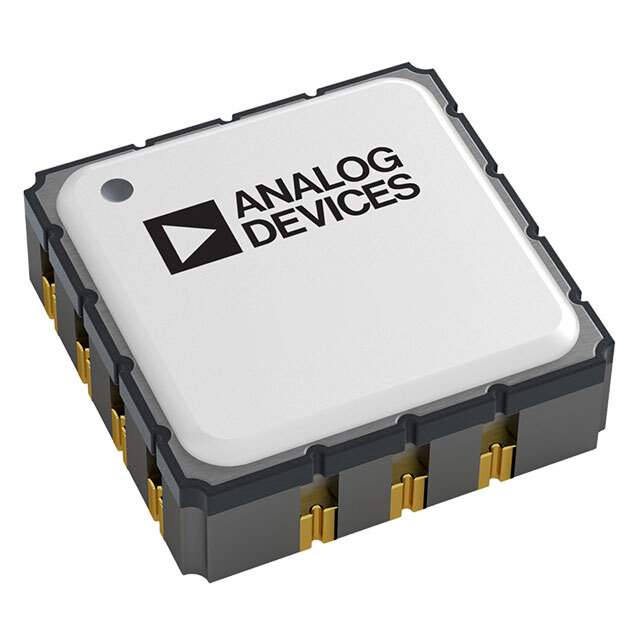

ADXL357BEZ-RL7 - Precision Accelerometer by Analog Devices Inc.

The ADXL357BEZ-RL7 is a state-of-the-art precision accelerometer designed and manufactured by Analog Devices Inc., a renowned leader in the semiconductor industry. This high-accuracy sensor is part of the ADXL357 series, offering robust and reliable performance for a wide range of applications that require precise motion detection and measurement.

Key Features:

  • Measurement Range: The ADXL357BEZ-RL7 provides a selectable measurement range of ±10g, ±20g, or ±40g, allowing it to cater to various application needs, from delicate instrumentation to more dynamic environments.
  • High Resolution: With its high-resolution 20-bit analog-to-digital converter (ADC), the device ensures detailed and accurate acceleration readings, making it ideal for precision applications.
  • Temperature Stability: The accelerometer boasts excellent temperature stability, minimizing errors and ensuring consistent performance across a wide temperature range.
  • Low Noise: The ADXL357BEZ-RL7 is designed with low noise density, which is critical for applications where the detection of subtle movements is essential.
  • Bandwidth: Users can select a bandwidth that suits their specific application, with options that provide a balance between noise and data output rate.
  • Power Efficiency: The device operates efficiently with a low power consumption mode, making it suitable for battery-powered applications.
  • Interface: It features a digital SPI interface for easy communication with microcontrollers and other digital systems.

Applications:

  • Industrial Monitoring
  • Structural Health Monitoring
  • Inertial Measurement Units (IMUs)
  • Platform Stabilization
  • Medical Devices
  • Robotics

The ADXL357BEZ-RL7 is housed in a compact LFCSP (Land Grid Array) package, which ensures a minimal footprint on the circuit board and is suitable for space-constrained designs. Its robust design and high precision make it an excellent choice for engineers and designers looking for a reliable accelerometer for their next project.

For more detailed information, specifications, and data sheets, customers are encouraged to visit the official Analog Devices Inc. website or contact their local sales representative.
