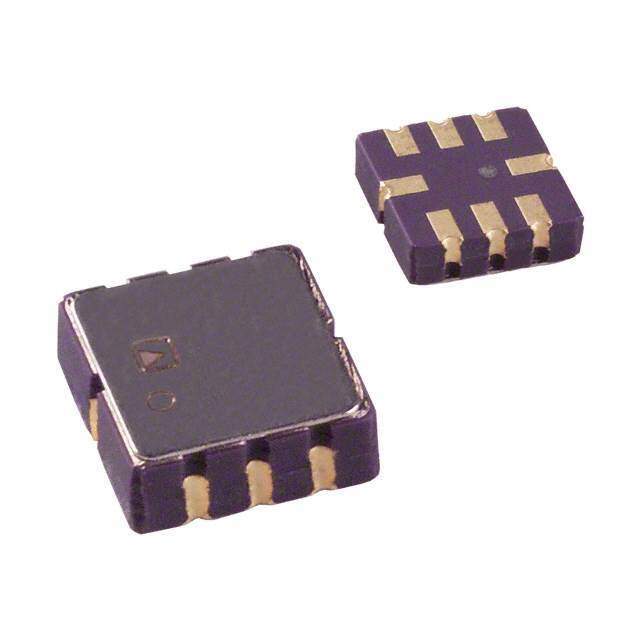

ADXL210AE

Part No ADXL210AE
Manufacturer Analog Devices Inc.
Catalog Motion Sensors - Accelerometers
Description Low-Cost 10 g Dual-Axis Accelerometer with Duty Cycle
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

RoHS State Request Verification
Manufacturer Analog Devices Inc.
Win Source Part Number 1142735-ADXL210AE
Manufacturer Homepage www.analog.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ADXL210AE CAD Model

Description

ADXL210AE Accelerometer by Analog Devices Inc.

The ADXL210AE is a state-of-the-art accelerometer designed and manufactured by the renowned company, Analog Devices Inc. This precision device is engineered to measure acceleration with a full-scale range of ±10 g. It is capable of providing both digital and analog signals corresponding to the acceleration experienced along the X-axis and Y-axis. The ADXL210AE is particularly suited for applications that demand low power consumption, high performance, and robust reliability.

One of the key features of the ADXL210AE is its ability to output a duty cycle (PWM) signal that can be easily converted to an analog voltage, which is proportional to the acceleration. This feature allows the accelerometer to interface with a wide range of systems without the need for complex analog-to-digital converters. Additionally, it offers a user-selectable bandwidth through a single capacitor, which provides designers with the flexibility to choose the filtering that best suits their application.

The ADXL210AE operates on a supply voltage range of 3.0V to 5.25V, making it versatile for various power supply configurations. Its low power consumption of less than 1.8 mA makes it an excellent choice for battery-powered applications, such as handheld devices, vehicle dynamic controls, and vibration monitoring systems.

With its integrated polysilicon surface-micromachining construction and small form factor, the ADXL210AE is not only durable but also space-efficient, measuring just 14 mm x 14 mm x 6 mm in its standard package. This compact size allows it to be easily integrated into systems where space is at a premium.

For ease of use, the ADXL210AE comes with a self-test feature that allows the user to verify the functioning of the sensor at any time. In addition, it has a temperature range of -40°C to +85°C, ensuring consistent performance across a wide range of environmental conditions.

Whether you're designing a new motion-sensitive product or upgrading an existing system, the ADXL210AE from Analog Devices Inc. offers the precision, low power, and flexibility needed to get the job done.
