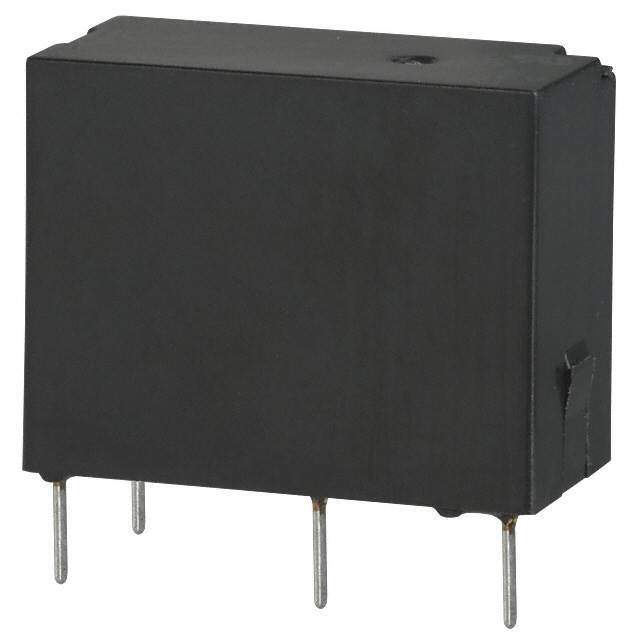

JQ1-24V-F Real Image
Same model may have multiple batches, images only for reference.

JQ1-24V-F

Part No JQ1-24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description 1a/1c 5A/10A small power relays Class B coil insulation type also available. | RELAY GEN PURPOSE SPDT 5A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Mounting Style Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 110VDC - Max
Coil Current 16.7mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class E
Must Operate Voltage 18 VDC
Must Release Voltage 1.2 VDC
Operate Time 20ms
Release Time 10ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 1.44 kOhms
Manufacturer Pack Quantity 100
MSL Level Not Applicable
Win Source Part Number 1191736-JQ1-24V-F
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian JQ1-24V-F CAD Model

Description

The JQ1-24V-F is a general-purpose relay manufactured by Panasonic Electric Works.

  • Termination Style: PC Pin
  • Mounting Style: Through-Hole
  • Contact Rating (Current): 5A
  • Switching Voltage: 250VAC, 110VDC - Max
  • Packaging: Bulk
  • Popularity: Medium
