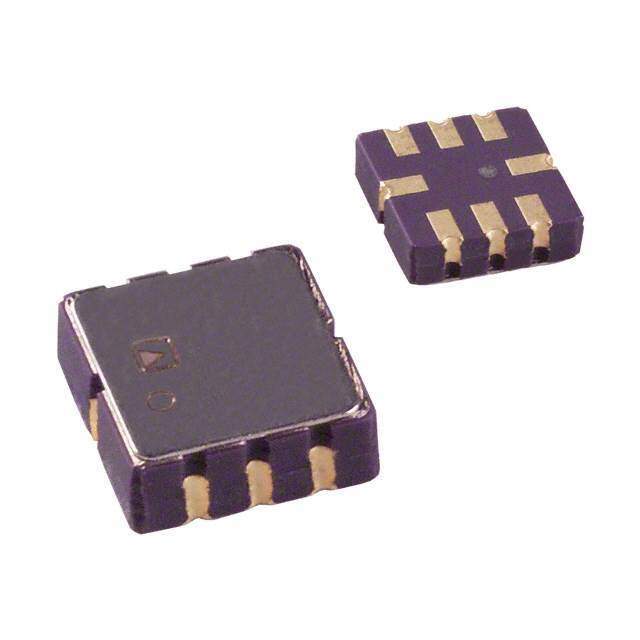

ADXL001-250BEZ-R7

Part No ADXL001-250BEZ-R7
Manufacturer Analog Devices Inc.
Catalog Motion Sensors - Accelerometers
Description High Performance, Wide Bandwidth Accelerometer
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Analog Devices Inc.
Series iMEMS
Packaging Reel - TR
Type Analog
Axis X
Acceleration Range ±250g
Sensitivity (mV/g) 4.4
Bandwidth 32kHz
Output Type Analog Voltage
Operating Supply Voltage 3.135 V ~ 6 V
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting SMD
Package 8-CLCC
Manufacturer Package 8-LCC (5x5)
Win Source Part Number 1142720-ADXL001-250BEZ-R7
Manufacturer Homepage www.analog.com
Family Name ADXL001
Introduction Date April 29, 2008
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ADXL001-250BEZ-R7 CAD Model

Description

ADXL001-250BEZ-R7: High-Performance Vibration Sensor by Analog Devices Inc.

The ADXL001-250BEZ-R7 is a state-of-the-art vibration sensor from the renowned manufacturer Analog Devices Inc., designed to deliver precise and reliable measurements in a wide range of industrial and commercial applications. This sensor is part of the ADXL001 series, which is known for its high-quality accelerometer components that cater to the needs of demanding environments.

Key Features

  • Wide Frequency Range: The ADXL001-250BEZ-R7 is capable of detecting frequencies from DC up to 22 kHz, making it suitable for capturing a broad spectrum of vibrations and movements.
  • High Sensitivity: With a sensitivity of 250 mV/g, this accelerometer provides accurate readings even in low-amplitude vibration scenarios.
  • Temperature Stability: The sensor is designed to maintain its performance across a wide temperature range, ensuring reliable operation in various environmental conditions.
  • Robust Design: Encased in a 5 mm x 5 mm x 2 mm LCC-8 package, the ADXL001-250BEZ-R7 is built to withstand harsh industrial settings without compromising its functionality.
  • Analog Output: It provides an analog voltage output that directly corresponds to the acceleration experienced by the sensor, facilitating easy integration with existing systems.

Applications

The ADXL001-250BEZ-R7 is highly versatile and can be used in a variety of applications, including:

  • Condition monitoring of machinery and equipment
  • Vibration analysis and diagnostics
  • Predictive maintenance systems
  • Structural health monitoring
  • Automotive safety and testing
  • Aerospace and defense instrumentation

Reliability and Quality

Analog Devices Inc. is known for its commitment to quality and reliability, and the ADXL001-250BEZ-R7 is no exception. It is meticulously engineered to meet the high standards of performance expected from industry professionals. Whether used in research and development or integrated into production systems, this accelerometer provides the accuracy and durability needed for critical vibration measurement tasks.

With its robust construction, precision measurement capabilities, and wide application scope, the ADXL001-250BEZ-R7 from Analog Devices Inc. is an excellent choice for engineers and technicians looking for a high-performance vibration sensor.
