ADM1278-1ACPZ Hot Swap Controller and Digital Power Monitor

The ADM1278-1ACPZ, manufactured by Analog Devices Inc., is a sophisticated hot swap controller and digital power monitor designed to ensure safe and efficient management of power distribution systems. This high-performance integrated circuit allows for the insertion and removal of circuit boards into live backplanes without causing disruptive glitches or short circuits, making it an essential component for high-availability systems.

Key Features

• Advanced Power Monitoring: The ADM1278-1ACPZ features precision current sensing and high-speed ADCs that provide accurate monitoring of the input current and voltage, making it possible to digitally monitor the power consumption of the board.
• Programmable Current Limit: Users can set the current limit threshold to match the requirements of their specific application, thus protecting the system from overcurrent conditions.
• Black Box Recorder Functionality: This device includes a black box recorder that logs fault conditions, which can be invaluable for diagnosing issues after a system failure.
• Integrated Hot Swap Control: With built-in charge pump and MOSFET control features, the ADM1278-1ACPZ facilitates safe insertion and removal of boards.
• Robust Protection Mechanisms: The device provides a variety of protection features, including overcurrent, overvoltage, undervoltage, and overtemperature protection to safeguard your systems.

Applications

The ADM1278-1ACPZ is ideal for a wide range of applications, including:

• Server and storage systems
• Network routers and switches
• Industrial and medical equipment
• High-power battery systems

Technical Specifications

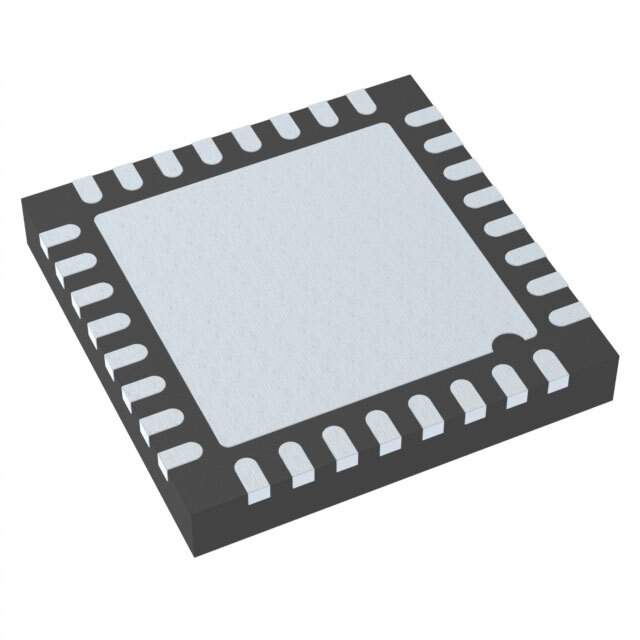

The ADM1278-1ACPZ operates over a wide input voltage range and is available in a compact 32-lead LFCSP (Lead Frame Chip Scale Package). It is designed for a broad range of operating temperatures, making it suitable for use in harsh environments.

Ordering Information

To order or inquire about the ADM1278-1ACPZ, visit Analog Devices Inc.'s official website or contact an authorized distributor. Ensure that you are getting genuine parts for optimal performance and reliability in your power management systems.
