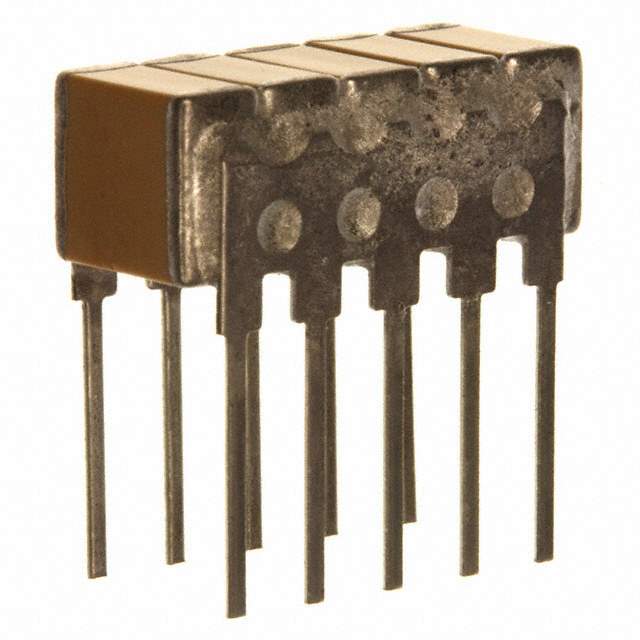

ST205C476MAN05 Real Image
Same model may have multiple batches, images only for reference.

ST205C476MAN05

Part No ST205C476MAN05
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
ST205C476MAN05 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series TurboCap™
Package Bulk
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL (Stacked)
Applications SMPS Filtering, Bypass, Decoupling
Mounting Type Through Hole
Package / Case Stacked DIP, 10 Lead
Dimension 0.525" L x 0.300" W (13.34mm x 7.62mm)
Height - Seated (Max) 0.220" (5.59mm)
Lead Spacing 0.220" (5.59mm)
Other Names 478-5071
Standard Package 48
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1302897-ST205C476MAN05
Ultra Librarian 3D Model Ultra Librarian ST205C476MAN05 CAD Model

Description

The TurboCap™ is a ceramic capacitor designed for SMPS filtering, bypass, and decoupling applications.

  • Capacitance: 47μF
  • Tolerance: ±20%
  • Rated Voltage: 50V
  • Temperature Coefficient: X7R
  • Height Seated (max): 0.220" (5.59mm)
  • Package: Bulk
  • Mounting Type: Through-hole
  • Package/Case: Stacked DIP, 10 lead
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.525" L x 0.300" W (13.34mm x 7.62mm)
  • Manufacturer: KYOCERA AVX
  • ECCN: EAR99
  • RoHS: Non-compliant
