Product Overview: ADL5358ACPZ-R7

The ADL5358ACPZ-R7 is a high-performance, double-balanced active mixer from Analog Devices Inc., designed to provide exceptional frequency conversion accuracy and isolation for a variety of RF and IF applications. This device is part of ADI's extensive lineup of RF components that cater to the demanding needs of communication systems, test equipment, and radar platforms.

Key Features and Benefits

• Wide Frequency Range: The ADL5358ACPZ-R7 is capable of operating over a broad frequency range, making it suitable for diverse applications, from base station receivers to complex RF systems.
• High Linearity: With excellent IIP3 performance, this mixer maintains signal integrity even at high input power levels, ensuring minimal distortion in the signal processing chain.
• Low Noise Figure: The device boasts a low noise figure, which is critical for maintaining a high signal-to-noise ratio (SNR), crucial for high-quality signal reception.
• High Isolation: The mixer provides high isolation between its ports, which reduces potential interference and improves overall system performance.
• Single-Ended RF/LO Inputs: For ease of integration, the mixer supports single-ended RF and LO inputs, simplifying the design and reducing the need for external components.

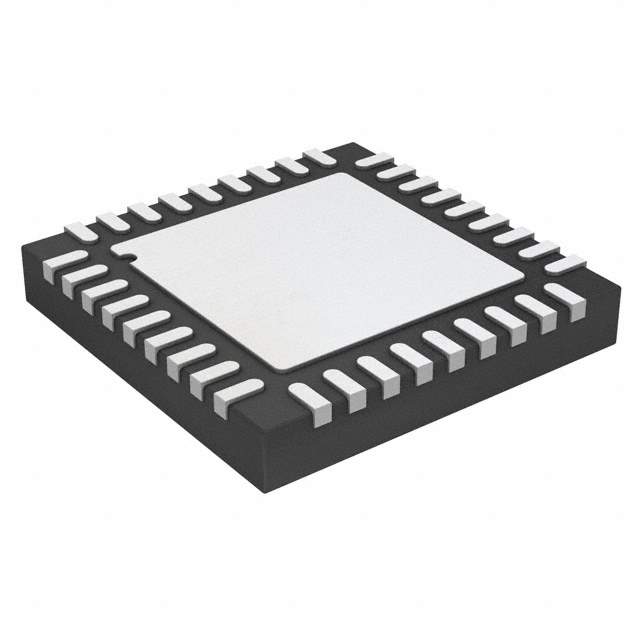

• Compact Package: Housed in a compact 3 mm x 3 mm LFCSP package, the ADL5358ACPZ-R7 is designed for space-constrained applications, without compromising on performance.

Applications

• Wireless Infrastructure
• Point-to-Point and Point-to-Multipoint Radios
• RFID Readers
• Test and Measurement Equipment
• Radar Systems

The ADL5358ACPZ-R7 is engineered to deliver reliable performance in environments where high dynamic range and low distortion are essential. Its robust design and manufacturing ensure that it can withstand the rigors of both commercial and industrial applications. Analog Devices Inc. provides extensive technical support and documentation, making integration of the ADL5358ACPZ-R7 into your design project a seamless experience.

For designers seeking a mixer that offers a combination of performance, integration, and reliability, the ADL5358ACPZ-R7 from Analog Devices Inc. is an excellent choice that meets and exceeds the stringent requirements of modern RF systems.
