Product Overview: AD9972BBCZ from Analog Devices Inc.

The AD9972BBCZ is a high-performance, single-chip, 14-bit, 80 MSPS analog-to-digital converter (ADC) designed by Analog Devices Inc., a global leader in high-performance semiconductors for signal processing applications. This ADC is part of a family of devices that integrate various features to simplify the design of complex signal chains, making it an ideal choice for advanced imaging and medical applications.

Key Features and Benefits

• High-Speed Performance: With a sampling rate of up to 80 MSPS, the AD9972BBCZ is capable of capturing high-frequency signals with precision, making it suitable for demanding applications that require accurate signal conversion.
• High Resolution: The 14-bit resolution ensures that the AD9972BBCZ provides a high level of detail in the digital representation of analog signals, resulting in improved image quality and measurement precision.
• Integrated Features: This ADC includes an on-chip sample-and-hold circuit and voltage reference, which reduce the number of external components required for operation and simplify system design.
• Low Power Consumption: Designed with power efficiency in mind, the AD9972BBCZ offers a low power dissipation, making it an excellent choice for portable and battery-powered devices.
• Differential Inputs: The differential input structure provides improved noise immunity and dynamic range, enhancing the performance of the system in challenging environments.
• Flexible Interface: The device features a flexible digital interface that is compatible with various DSP and FPGA architectures, ensuring easy integration into a wide range of systems.

Applications

The AD9972BBCZ is particularly well-suited for advanced imaging systems, such as digital X-ray and MRI, as well as for high-speed instrumentation and medical imaging applications. Its robust feature set ensures reliable performance even in the most critical data acquisition scenarios.

Product Specifications

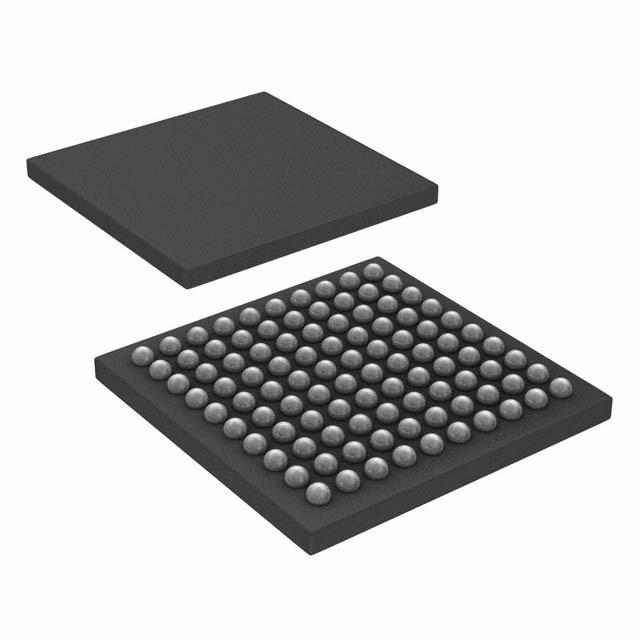

Parameter Value Resolution 14-bit Max Sample Rate 80 MSPS Input Type Differential Interface Type Digital Supply Voltage 1.8V to 3.3V Package CSPBGA
