AD8337BCPZ-WP - General Purpose, Low Noise, Single-Supply Variable Gain Amplifier (VGA)

The AD8337BCPZ-WP is a versatile, low noise, single-supply variable gain amplifier (VGA) designed by Analog Devices Inc., a leader in high-performance analog technology. This component is specifically engineered to provide flexible gain control and excellent dynamic performance in a wide range of applications, including medical ultrasound, radar systems, and communication infrastructure.

Key Features:

• Single-Supply Operation: Operating from a single 5 V supply, the AD8337BCPZ-WP simplifies power management in complex systems and is ideal for portable and battery-operated equipment.
• Wide Bandwidth: With a bandwidth of 18 MHz at -3 dB, this VGA can handle a variety of signal frequencies, making it a versatile choice for diverse applications.
• Low Noise Performance: The device boasts a low noise figure, ensuring that signal integrity is maintained even with significant amplification.
• Linear-in-dB Gain Control: The AD8337BCPZ-WP features a linear-in-dB scaling with a 20 mV/dB gain control interface which allows for precise and easy gain adjustments.
• Robust Temperature Range: This VGA operates effectively across a wide temperature range, making it suitable for harsh environments.

Applications:

• Medical Ultrasound and Diagnostic Imaging
• IF and Baseband Gain Control
• Radar and Sonar Systems
• Communication Infrastructure
• General Purpose Automatic Gain Control (AGC) Circuits

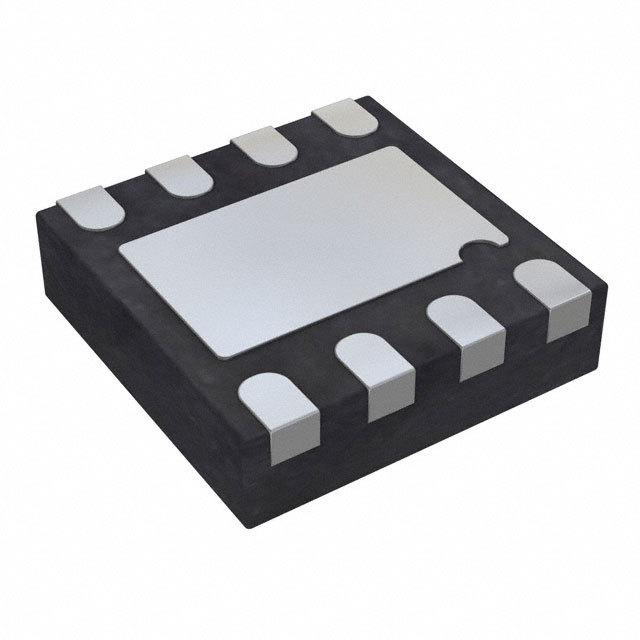

The AD8337BCPZ-WP comes in a compact LFCSP (Lead Frame Chip Scale Package) that is designed for efficient space utilization on printed circuit boards. Its waterproof design ensures reliable performance in moisture-prone environments, making it an excellent choice for outdoor or marine applications.

With its combination of high performance, ease of use, and versatility, the AD8337BCPZ-WP from Analog Devices Inc. stands out as an exceptional solution for designers seeking to optimize their systems for both performance and power efficiency.
