IWR1642AQAGABLR

Part No IWR1642AQAGABLR
Manufacturer Texas Instruments
Catalog RF Detectors
Description IC RF DETECT 76-81GHZ 161FC/CSP / RF Detector IC General Purpose 76GHz ~ 81GHz 161-TFBGA, FCCSP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Detectors
Mfr Texas Instruments
Series mmWave
Package Tape & Reel
Product Status Active
Frequency 76GHz ~ 81GHz
RF Type General Purpose
Input Range -
Accuracy -
Voltage - Supply 1.71V ~ 1.89V, 3.15V ~ 3.45V
Mounting Type Surface Mount

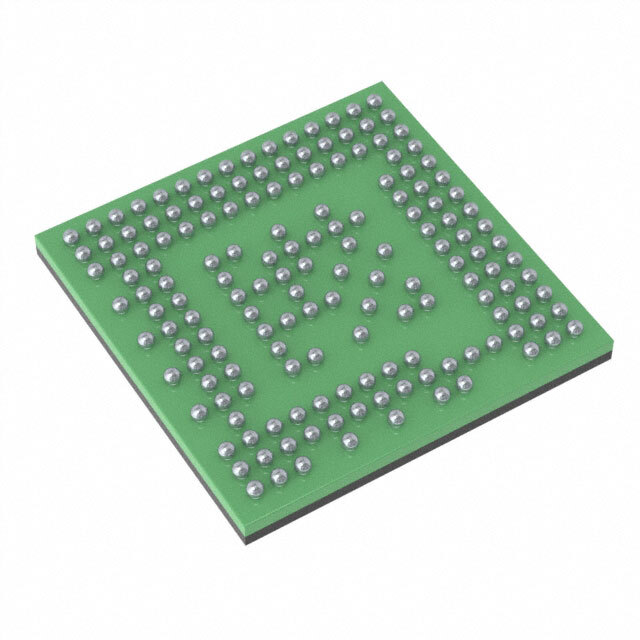

Package / Case 161-TFBGA, FCCSP
Supplier Device Package 161-FC/CSP (10.4x10.4)
Base Product Number IWR1642
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1352863-IWR1642AQAGABLR
Ultra Librarian 3D Model Ultra Librarian IWR1642AQAGABLR CAD Model

Description

The IWR1642AQAGABLR is a cutting-edge, single-chip millimeter-wave sensor from Texas Instruments, designed for a wide range of industrial applications. This integrated circuit is part of Texas Instruments' IWR family of mmWave sensors, which are known for their high performance, reliability, and accuracy in distance sensing and object detection.

Key Features

  • Highly Integrated Solution: The IWR1642AQAGABLR incorporates a 76-GHz to 81-GHz radar front end, ARM R4F-based microcontroller, and a hardware accelerator for fast Fourier transform (FFT) processing, all in a single compact package.
  • Advanced Signal Processing: Equipped with an on-chip DSP for advanced signal processing, this sensor can perform complex tasks such as range, velocity, and angle estimation, which are essential for accurate object detection and tracking.
  • Low Power Consumption: Despite its powerful capabilities, the IWR1642AQAGABLR is designed for efficiency, with low power consumption that makes it suitable for battery-operated and energy-conscious applications.
  • Robust Design: The device is built to operate in harsh industrial environments, offering a high level of integration to reduce the design complexity and the number of external components required.

Applications

The versatility of the IWR1642AQAGABLR makes it ideal for a range of applications, including:

  • Industrial automation and robotics
  • Traffic monitoring and vehicle classification
  • Drone altitude and obstacle detection
  • Security and surveillance systems

Design Support

Texas Instruments provides comprehensive design support for the IWR1642AQAGABLR, including detailed documentation, development kits, and reference designs. Engineers can leverage TI's resources to accelerate the development process and bring innovative products to market faster.

With its blend of performance, integration, and support, the IWR1642AQAGABLR from Texas Instruments is an exceptional choice for developers looking to harness the capabilities of mmWave sensing in their next industrial project.
