AD8312ACBZ Voltage Output, 50 Hz to 3.9 GHz, 65 dB Logarithmic Detector from Analog Devices Inc.

The AD8312ACBZ is a high-performance, voltage-output logarithmic detector from the esteemed manufacturer Analog Devices Inc., designed to operate in the frequency range from 50 Hz to 3.9 GHz. This versatile component is ideal for RF signal processing applications where precise signal strength measurement is essential. The device's wide dynamic range of 65 dB makes it suitable for a variety of demanding applications, including wireless infrastructure, radar systems, and RF instrumentation.

Constructed with state-of-the-art technology, the AD8312ACBZ offers a logarithmic response that is proportional to the input signal voltage. This feature allows for easy conversion of RF signal strength to a corresponding voltage level, which can be read by an analog-to-digital converter or directly processed in analog form. The device is capable of detecting signals with amplitudes from -55 dBm to +10 dBm, providing designers with a flexible tool for monitoring and controlling RF power.

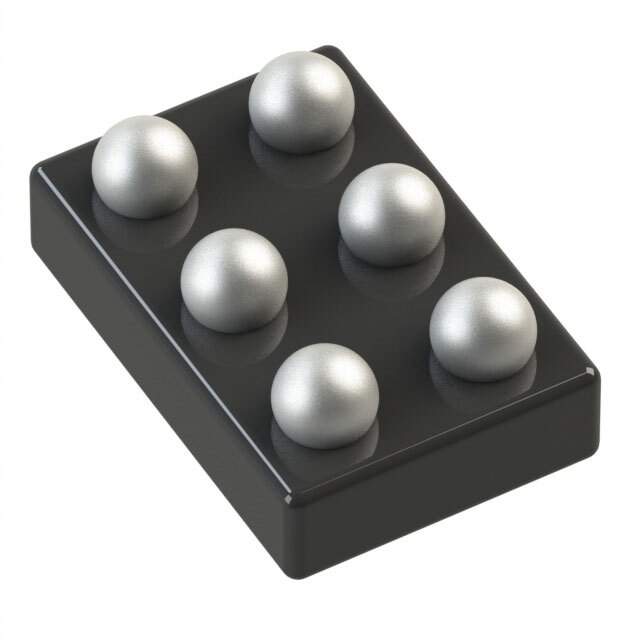

One of the key advantages of the AD8312ACBZ is its fast response time, which is critical for real-time monitoring and control. The device's temperature stability ensures consistent performance across a wide temperature range, making it reliable for use in varied environmental conditions. The logarithmic detector is offered in a compact, 8-lead CB package, which is ideal for space-constrained applications.

Integration of the AD8312ACBZ into a system is straightforward, thanks to its single-supply operation, which simplifies power supply design. The device also features an on-chip temperature compensation circuit that minimizes the variations in performance over temperature, enhancing the accuracy of signal strength measurements.

For designers looking to implement precise RF signal strength detection in their systems, the AD8312ACBZ from Analog Devices Inc. stands out as a robust and reliable solution. With its wide frequency range, high dynamic range, and compact form factor, this logarithmic detector is an excellent choice for advanced RF applications.

Product Specifications:

• Part Number: AD8312ACBZ
• Manufacturer: Analog Devices Inc.
• Frequency Range: 50 Hz to 3.9 GHz
• Dynamic Range: 65 dB
• Output: Voltage
• Package: 8-lead CB
• Single-Supply Operation
