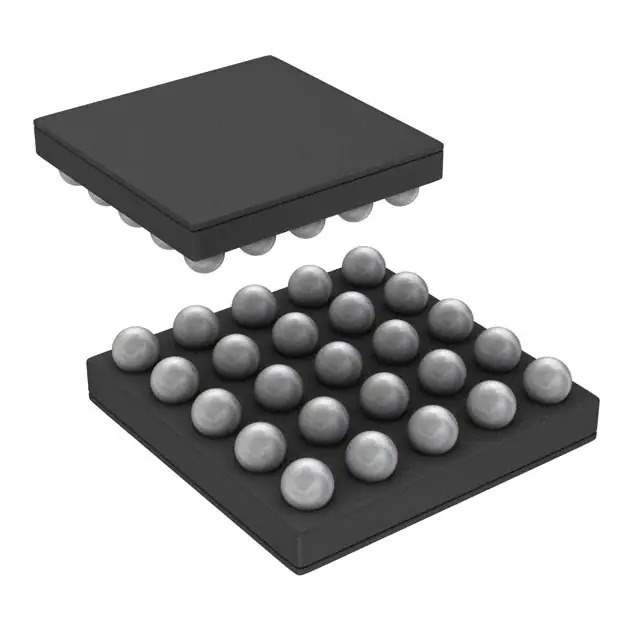

Product Overview: LP8550TLX/NOPB - Texas Instruments

The LP8550TLX/NOPB is a high-efficiency, LED backlight driver designed by Texas Instruments for use in medium to large LCD panels that are commonly found in notebook computers and monitors. This integrated circuit (IC) is engineered to provide consistent and reliable performance, ensuring optimal display brightness and enhancing the overall visual experience.

Key Features

• Boost Converter: The LP8550TLX/NOPB features a built-in boost converter that efficiently steps up the input voltage to the level required to drive the LEDs at the desired brightness.
• High-Efficiency: With an emphasis on energy efficiency, this LED driver is capable of achieving high efficiency, which helps to minimize power consumption and extend battery life in portable devices.
• Dimming Control: It supports multiple dimming control methods, including PWM (Pulse-Width Modulation), which allows for precise control over the backlight brightness, enhancing the user's visual experience and reducing power usage.
• Flexible LED Configuration: The device can drive up to 10 LEDs in series and multiple strings in parallel, providing design flexibility for various screen sizes and resolutions.
• Protection Features: The LP8550TLX/NOPB includes several protection features such as over-voltage, over-temperature, LED open and short circuit protection, ensuring the longevity and safety of the backlight system.

Applications

The LP8550TLX/NOPB is ideal for a range of applications that require high-quality LED backlighting, including:

• Notebook computers
• Monitors
• Tablets
• Other portable devices with LCD displays

Environmental and Quality Standards

The device is provided in a RoHS-compliant package, indicating that it is manufactured with the restriction of certain hazardous substances in electronic equipment. Additionally, the NOPB (No Lead (Pb)) designation signifies that the product is lead-free, catering to environmentally conscious product design requirements.

Conclusion

In summary, the LP8550TLX/NOPB from Texas Instruments is a versatile and efficient solution for driving LED backlights in a variety of LCD applications. Its combination of high-efficiency operation, flexible configuration options, and robust protection features make it a reliable choice for designers looking to enhance the visual performance of their products.
