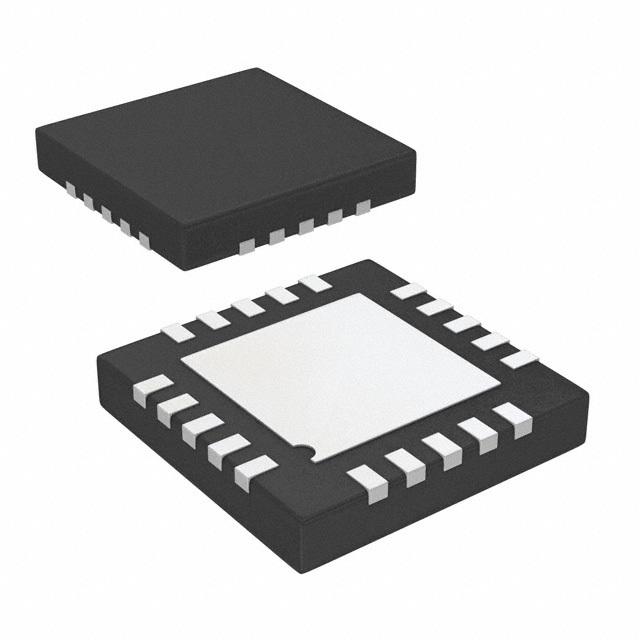

The AD8232ACPZ-WP from Analog Devices Inc. is a fully integrated heart rate monitor designed for the most demanding and sensitive applications in the medical and fitness industries. This compact, low-power, single-lead, heart rate monitor analog front end is optimized for monitoring the electrocardiogram (ECG) and detecting heart rate signals.

Key Features

• Integrated Noise Suppression: The AD8232ACPZ-WP features a high-pass filter to eliminate motion artifacts and electrode half-cell potential noise that can interfere with heart rate signals.
• Low Power: With its low power consumption, it is ideal for portable battery-powered devices such as wearable heart rate monitors and fitness trackers.
• Lead-Off Detection: The device includes a lead-off detection circuitry that signals when an electrode is disconnected, ensuring reliable and consistent readings.
• Flexible Configuration: It offers a range of configurable settings for gain, filtering, and modulation to accommodate different types of ECG pads and placements.
• High CMRR: The high common-mode rejection ratio (CMRR) minimizes the influence of common-mode interference for a clearer ECG signal.

Applications

• Portable ECG
• Heart rate monitors
• Fitness and activity heart rate monitoring
• Biopotential signal acquisition

Product Specifications

The AD8232ACPZ-WP is a robust and precise solution for developers and manufacturers who require a reliable component for their heart rate monitoring systems. Its waterproof designation also ensures performance in diverse environmental conditions, making it a versatile choice for a wide array of applications.
