Product Overview: AD7545ACQ by Analog Devices Inc.

The AD7545ACQ is a high-performance, precision digital-to-analog converter (DAC) manufactured by the renowned Analog Devices Inc. Designed to offer exceptional accuracy and stability, this IC is a part of the AD7545 series, which is well-regarded for its reliability and ease of use in various applications.

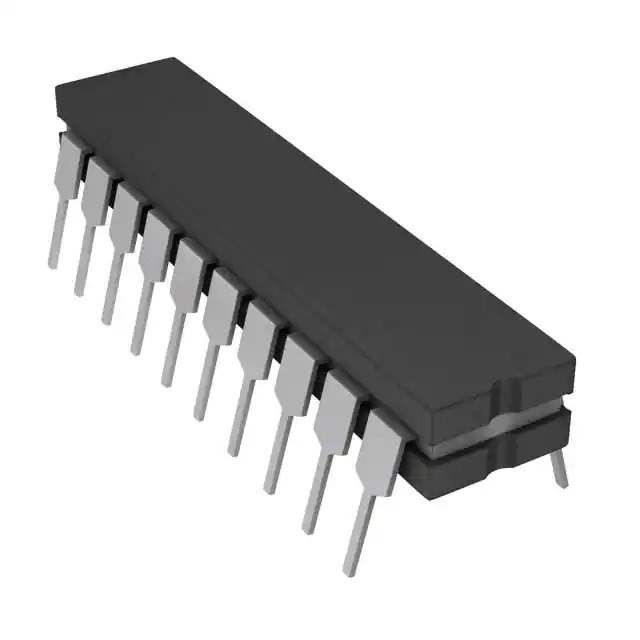

This 12-bit, multiplying DAC features a CMOS (Complementary Metal-Oxide-Semiconductor) structure, providing an excellent power-to-performance ratio. It operates on a single +5V to +15V power supply, or dual supplies of up to ±15V, making it versatile for different system requirements. The AD7545ACQ comes in a compact 20-pin CerDIP (Ceramic Dual In-line Package), ensuring a durable and robust physical form factor suitable for harsh industrial environments.

One of the key attributes of the AD7545ACQ is its monotonic performance over the entire operating temperature range, which guarantees that the output will only move in the intended direction with increasing digital input. This characteristic is crucial for precision control systems where incremental changes must be predictable and consistent.

The DAC also features a low power dissipation of 15 mW at +5V, which is significantly beneficial for power-sensitive applications. Additionally, it boasts a settling time of just 1 µs to 1/2 LSB, providing rapid and accurate responses for real-time processes. With its latch-free design, the AD7545ACQ ensures that there are no pipeline delays, making it ideal for applications requiring immediate data conversion and output.

Integration of the AD7545ACQ into a system is made easier thanks to its industry-standard pinout and digital interface. The IC is compatible with most microprocessors and can be directly interfaced with 8-bit or 16-bit data buses. Its versatility extends to applications such as process control, data acquisition systems, digital signal processing, and computer graphics where high precision and fast throughput are necessary.

In conclusion, the AD7545ACQ is a testament to Analog Devices Inc.'s commitment to delivering high-quality, reliable components for sophisticated electronic systems. Its combination of speed, precision, and low power consumption makes it an excellent choice for designers looking to enhance the performance of their digital-to-analog conversion solutions.
