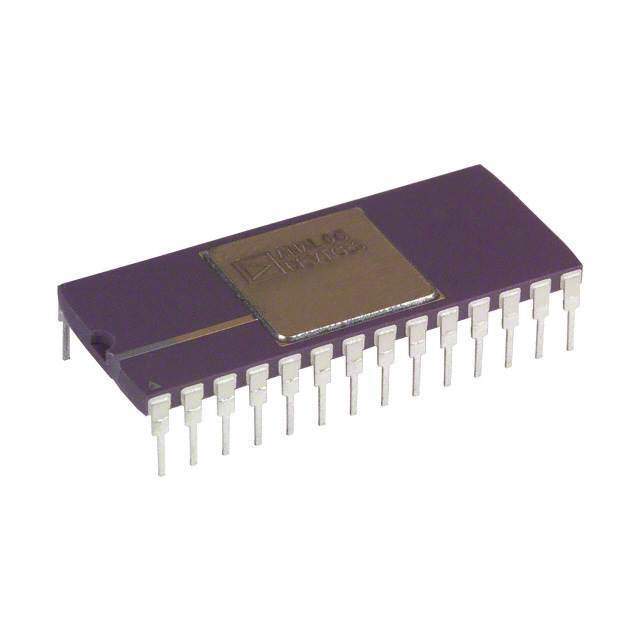

Analog Devices Inc. AD664AD-UNI Monolithic 12-Bit Quad DAC

The AD664AD-UNI from Analog Devices Inc. is a high-performance, monolithic quad 12-bit digital-to-analog converter (DAC) designed to deliver precision and reliability in demanding applications. This integrated circuit (IC) features four voltage output DACs on a single monolithic chip, providing a compact and efficient solution for systems requiring multiple DACs.

With its 12-bit resolution, the AD664AD-UNI ensures fine-grain control over analog outputs, making it an ideal choice for applications that demand high precision, such as industrial automation, process control, and advanced scientific instrumentation. Each of the four DACs can be operated independently, allowing for versatile control schemes in multi-channel applications.

The device operates on a single supply voltage in the "UNI" range, which typically refers to a unipolar supply. This simplifies power supply requirements and can be beneficial for systems with limited power supply options. The AD664AD-UNI boasts a settling time of typically 8 microseconds to ±1/2 LSB, ensuring quick response times which are crucial for real-time applications.

Additional features of the AD664AD-UNI include:

• Output Voltage Range: Each DAC can produce an output ranging from 0 V to +10 V, which is suitable for a wide array of applications.
• On-Chip Data Latches: These latches provide the convenience of loading data into each DAC separately, thereby enhancing the flexibility of the device.
• Double-Buffered Input Structure: This feature allows for simultaneous updating of all DACs, which is critical in synchronized signal generation scenarios.
• Low Power Consumption: The AD664AD-UNI is designed for low power operation, making it ideal for portable and power-sensitive applications.
• High Reliability: Built with Analog Devices Inc.'s advanced IC fabrication technologies, this DAC offers excellent long-term stability and performance.

For ease of integration, the AD664AD-UNI is packaged in a 28-pin DIP (Dual In-line Package), providing compatibility with standard breadboards and sockets. It also supports digital interfacing with microprocessors or DSPs, with its logic inputs meeting both TTL and CMOS voltage level standards.

In summary, the AD664AD-UNI is a versatile, high-quality DAC solution that delivers the performance required for sophisticated analog output tasks in a diverse range of electronic systems.
