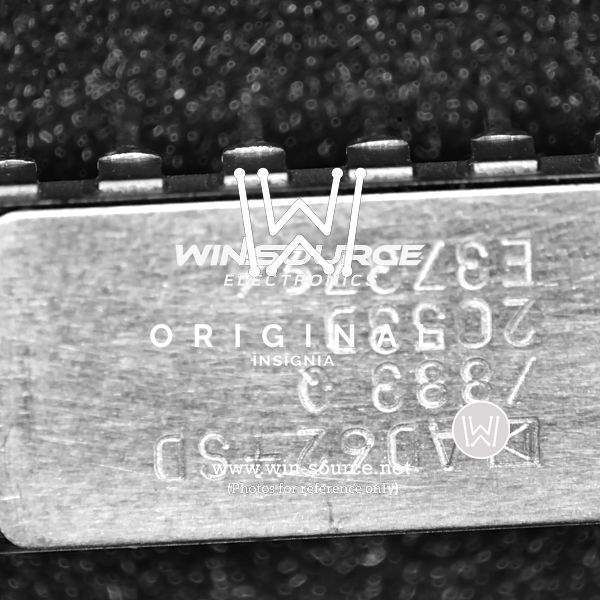

The AD624SD/883B is a high precision instrumentation amplifier designed by Analog Devices Inc., a leader in the semiconductor industry. This component is specifically engineered to offer exceptional accuracy and stability, which are critical in advanced industrial, medical, and military applications where reliable signal processing is paramount.

Key Features

• High Gain Accuracy: The AD624SD/883B provides a gain accuracy of ±0.10% max, which ensures precise amplification of input signals without significant deviation.
• Low Nonlinearity: With a nonlinearity of only 0.001% max at G = 100, this amplifier maintains signal fidelity, even at high gain levels.
• Low Noise: A low noise figure contributes to the clarity of the output signal, making it ideal for sensitive instrumentation.
• Wide Gain Range: The device offers a user-selectable gain range from 1 to 10,000, providing versatility for various applications.
• High Input Impedance: The high input impedance minimizes loading on the input signal source, preserving signal integrity.

Applications

The AD624SD/883B is designed for use in a wide range of applications, including:

• Medical instrumentation, such as ECG and EEG monitors
• Precision data acquisition systems
• Industrial process controls
• Strain gauge amplifiers
• Military and aerospace electronics

Product Specifications

Quality and Reliability

The AD624SD/883B is built to meet the stringent requirements of military standards, ensuring operation in the toughest conditions. With its robust design, it provides consistent performance and reliability for critical applications.
