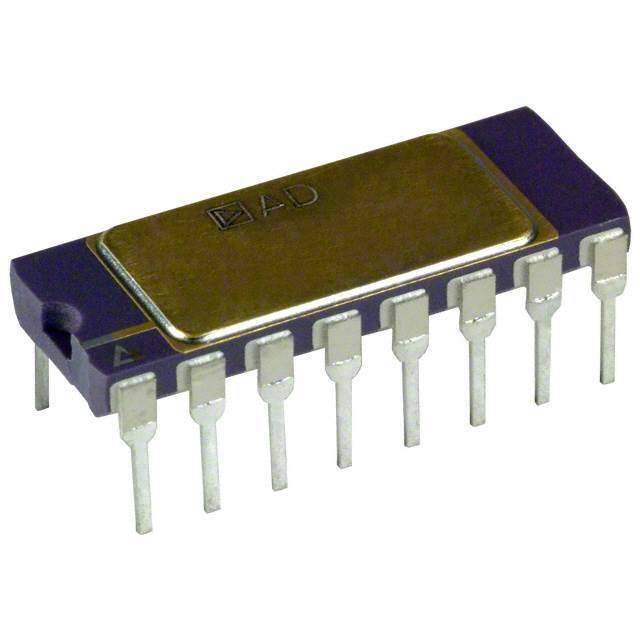

The AD561JD from Analog Devices Inc. is a high-precision digital-to-analog converter (DAC) designed for a wide array of applications requiring accurate and stable analog output derived from digital values. This monolithic DAC offers a full 10-bit resolution with a total unadjusted error (TUE) of ±0.1% of full scale. The AD561JD operates on a single +5V power supply, making it suitable for many digital systems that require low power consumption and ease of integration.

Key Features

• Resolution: 10-bit accuracy ensures fine granularity in analog output, catering to precise control systems and measurement equipment.
• Settling Time: Fast settling time of 150ns to full accuracy allows for rapid updates to the analog output, suitable for real-time applications.
• Output Range: The device provides a 0V to +10V output range, giving it the flexibility to interface with various sensors and actuators.
• Interface: Simple digital interface compatible with TTL and CMOS logic levels, facilitating easy integration with microprocessors and digital systems.
• Power Supply: Single +5V power supply operation for compatibility with standard digital systems and reduced system complexity.
• No External Components Required: The AD561JD is self-contained, requiring no external trims to achieve full 10-bit accuracy, thus simplifying the design and reducing the bill of materials.

Applications

The versatility of the AD561JD makes it an ideal choice for a variety of high-performance applications, including:

• Data acquisition systems
• Process control and automation
• Digital signal processing
• Test and measurement equipment
• Computerized calibration

In summary, the AD561JD from Analog Devices Inc. represents a reliable and precise DAC solution, combining performance and ease of use for engineers and designers across multiple industries. Its robust feature set ensures that it can meet the stringent requirements of sophisticated electronic systems.
