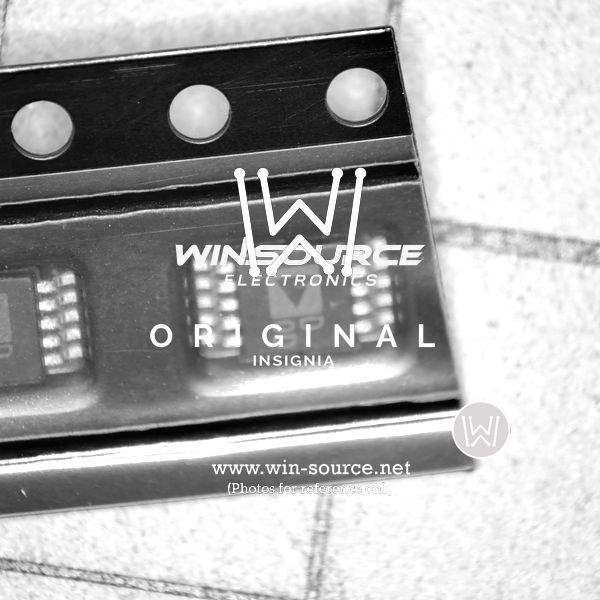

AD5161BRMZ10 Digital Potentiometer by Analog Devices Inc.

The AD5161BRMZ10 is a high-performance digital potentiometer manufactured by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This compact, digitally-controlled variable resistor device offers a convenient solution for adjusting system parameters or calibrating instrument settings without the need for mechanical potentiometers or trimmers.

This particular model features a 10 kΩ end-to-end resistance value with a nominal resistance tolerance of ±30%. It comes in a compact MSOP-10 (Mini Small Outline Package) that is suitable for space-constrained applications. The AD5161BRMZ10 operates from a single 2.7 V to 5.5 V supply, making it versatile for both portable and line-powered applications.

One of the key benefits of this digital potentiometer is its 256-position resolution, which allows for fine adjustment of resistance with each step. This is particularly useful for precise control over voltage, current, or signal amplification in a circuit. Additionally, the device features a power-on preset to a midscale position, which simplifies the initialization process in digital systems.

The AD5161BRMZ10 supports I²C-compatible serial interface, enabling easy integration into microcontroller-based systems. This interface allows for the digital potentiometer to be controlled by software, providing a high degree of flexibility and programmability. Moreover, it comes with an extra programmable shutdown feature that opens the resistor chain at both terminals and minimizes power consumption when not in active use.

Applications for the AD5161BRMZ10 are diverse and include adjustable power supplies, LCD screen calibration, audio control, gain and offset adjustment, and automotive electronics, among others. Its robust design ensures reliable performance in a wide range of environmental conditions, making it a go-to choice for engineers and designers looking for a high-quality digital potentiometer solution.

Overall, the AD5161BRMZ10 from Analog Devices Inc. represents a blend of precision, flexibility, and ease of use, making it an excellent component for a myriad of electronic applications where variable resistance control is required.
