The BLF989SU is a high-power LDMOS transistor designed for use in a variety of RF power amplifier applications. Manufactured by Ampleon USA Inc., this transistor is well-suited for broadcast transmitters, industrial heating, and scientific applications where high power and reliability are essential.

Applications:

• FM Broadcast Transmitters: Used in high-power FM broadcast transmitters to amplify the RF signal.
• TV Broadcast Transmitters: Employed in TV broadcast transmitters for signal amplification.
• Industrial Heating: Utilized in RF generators for industrial heating applications, such as plastic welding and drying.
• Scientific Applications: Used in research equipment and particle accelerators for RF power generation.
• MRI Systems: Powers the RF amplifiers used in Magnetic Resonance Imaging (MRI) systems.

Features:

• High Power Output: Delivers high RF power output for demanding applications.
• High Efficiency: Operates with high efficiency, minimizing power consumption and heat dissipation.
• Wideband Operation: Supports a wide range of frequencies, making it versatile for various applications.
• High Gain: Provides high gain, reducing the drive power requirements.
• Robust Design: Designed for high reliability and long life in demanding environments.

Benefits:

• Increased Transmitter Power: Enables higher power levels in broadcast transmitters, extending coverage area.
• Reduced Operating Costs: High efficiency minimizes power consumption and reduces operating costs.
• Improved System Performance: High gain and wideband operation enhance the performance of RF power amplifiers.
• Enhanced Reliability: Robust design ensures long-term reliability and minimizes downtime.
• Simplified Design: Integrated features simplify the design of RF power amplifiers.

Additional Details:

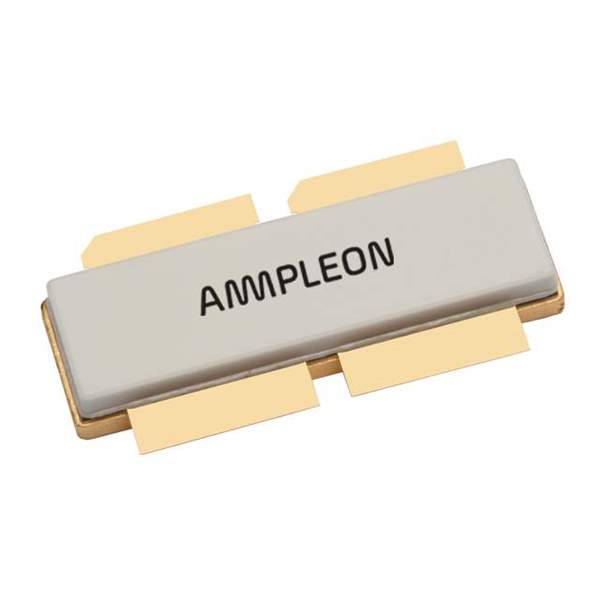

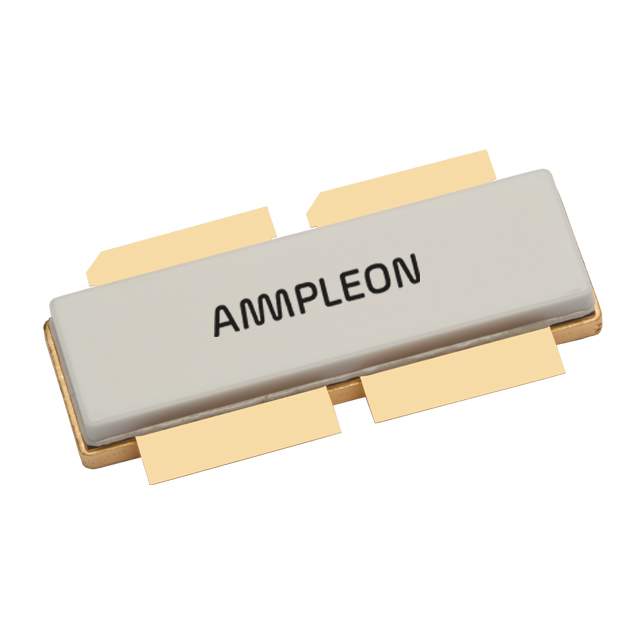

The BLF989SU is typically packaged in a ceramic package with earless flange for optimal thermal performance. It is designed to operate at high voltages and currents and requires careful thermal management to ensure reliable operation. The transistor's performance is optimized for specific frequency ranges, and appropriate matching networks are required to achieve optimal power output and efficiency. Detailed datasheets and application notes are available from Ampleon to assist designers in implementing the BLF989SU in their applications.
