Same model may have multiple batches, images only for reference.

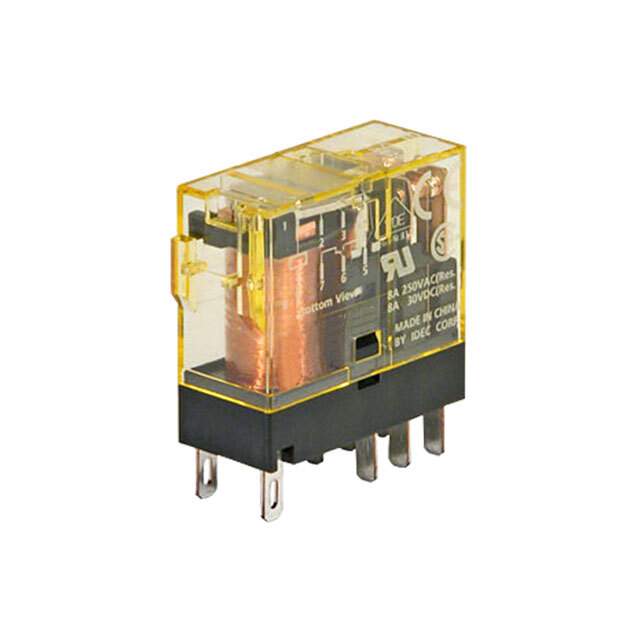

RJ2S-C-A120 Real Image
Same model may have multiple batches, images only for reference.

RJ2S-C-A120

Part No RJ2S-C-A120
Manufacturer IDEC
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 8A 120V / General Purpose Relay DPDT (2 Form C) 120VAC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr IDEC
Series RJ
Package Bulk
Mounting Type Socketable
Coil Voltage 120VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8 A
Switching Voltage 250VAC - Nom
Coil Current 7.5 mA
Coil Type Non Latching
Termination Style Plug In
Must Operate Voltage 96 VAC
Must Release Voltage 36 VAC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 6.4 kOhms
Base Product Number RJ2S
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0050
Other Names 1885-1423
Standard Package 1
Win Source Part Number 1091753-RJ2S-C-A120
Ultra Librarian 3D Model Ultra Librarian RJ2S-C-A120 CAD Model

Description

The RJ series power relay is a high-quality general-purpose relay.

  • Type: General-Purpose Relay
  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 8A
  • Switching Voltage: 250VAC
  • Coil Voltage: 120VAC
  • Coil Resistance: 6.4 kOhms
  • Coil Current: 7.5 mA
  • Operate Time: 15 ms
  • Release Time: 10 ms
  • Mounting: Socketable
  • Temperature Range: -40°C to 70°C
  • Model: RJ2S-C-A120
  • Alternative Parts: RJ2S-CL-A120, MY2 AC110/120 (S), MY2I4AC110120, RQ2V-CN-A115, 8869930000, and 8870220000
