Same model may have multiple batches, images only for reference.

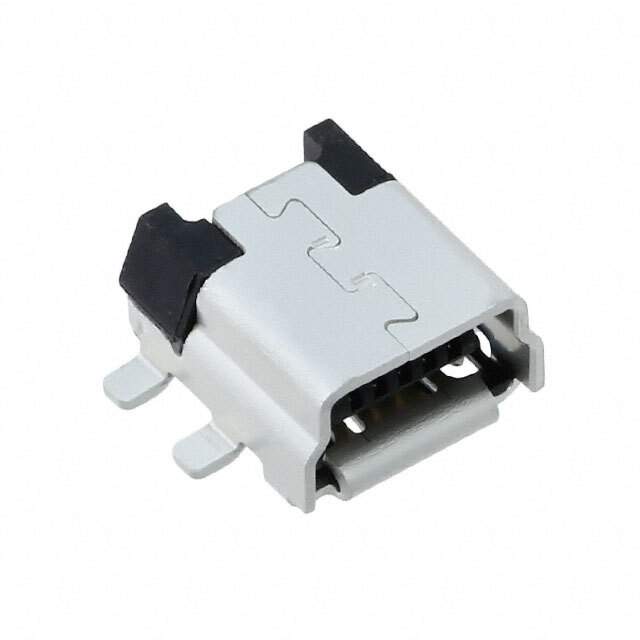

UX60R-MB-5ST Real Image
Same model may have multiple batches, images only for reference.

UX60R-MB-5ST

Part No UX60R-MB-5ST
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT MINI USB2.0 5POS SMD
Datasheet
UX60R-MB-5ST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Series UX
Connector Type USB - mini B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Guide, Solder Retention
Operating Temperature Range -30°C ~ 75°C
Number of Ports 1
Current Rating 1A
Voltage Rating DC 5VAC
Mating Cycles 5000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Brass
Material Flammability Rating UL94 V-0
Insulation Color Black
Win Source Part Number 760494-UX60R-MB-5ST
Popularity Medium
Supply and Demand Status Limited
Family Name UX60
Introduction Date August 07, 2004
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian UX60R-MB-5ST CAD Model

Description

The Hirose Electric Co Ltd UX60R-MB-5ST is a USB mini B connector from Hirose Electric Co Ltd.

  • Series: UX
  • Packaging: Digi-Reel
  • Current Rating: 1A
  • Number of Contacts: 5
  • Mounting Type: Surface Mount, Right Angle, Horizontal
  • Shielding: Shielded
  • Flammability Rating: UL94 V-0
  • ECCN: EAR99
  • Popularity: Medium
  • Insulation Color: Black
  • Voltage Rating DC: 5VAC
