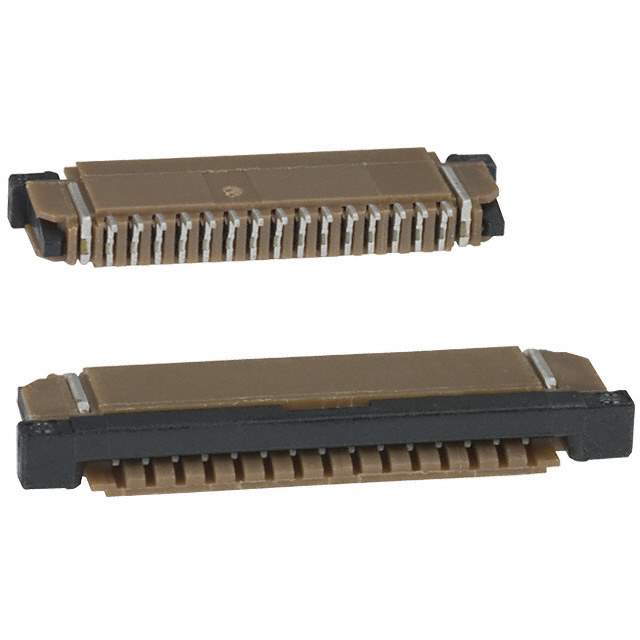

SFW15R-1STE1LF Real Image
Same model may have multiple batches, images only for reference.

SFW15R-1STE1LF

Part No SFW15R-1STE1LF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 15POS 1.00MM R/A / 15 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Amphenol ICC (FCI)
Series SFW-R
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 15
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.106" (2.70mm)
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 100V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Housing Color Brown
Mating Cycles 20
Base Product Number SFW15R
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Names 609-1905-6,609-1905-2,SFW15R1STE1LF,609-1905-1
Standard Package 2,000
Win Source Part Number 990643-SFW15R-1STE1LF
Ultra Librarian 3D Model Ultra Librarian SFW15R-1STE1LF CAD Model

Description

The SFW-R series of FFC/FPC connectors are a great choice for electronic devices that require a low profile, space-saving connector.

  • Product: SFW15R1STE1LF
  • Positions: 15
  • Pitch: 1.00mm
  • Features: Solder retention and zero insertion force (ZIF)
  • Voltage Rating: 100V
  • Current Rating: 1A
  • Housing Material: Polyphenylene sulfide (PPS) which is glass-filled
  • Contact Material: Phosphor bronze with a tin finish
  • Packaging: Tape and reel
  • Standard Package: 2,000
  • Ideal For: Flat flex cables with a thickness of 0.30mm
  • Locking Feature: To secure the cable in place
  • Mounting Type: Surface mountable and has a right-angle mounting type
  • Temperature Range: -55°C to 105°C
