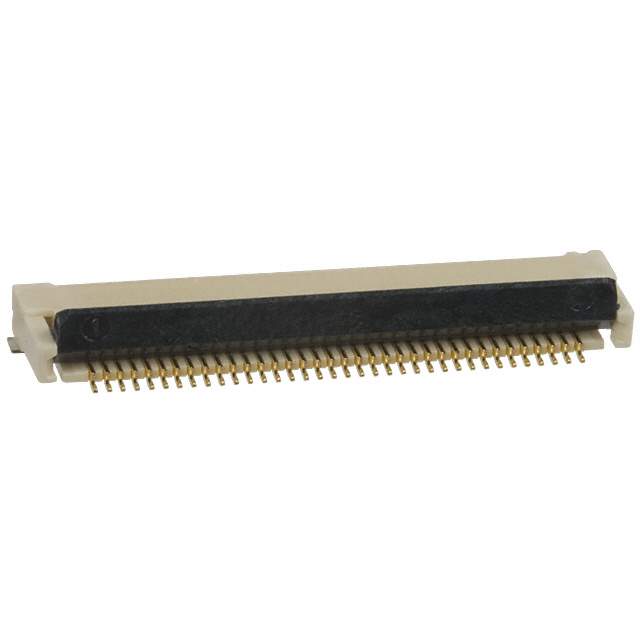

XF2M-3615-1A Real Image
Same model may have multiple batches, images only for reference.

XF2M-3615-1A

Part No XF2M-3615-1A
Manufacturer Omron
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FPC 36POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 22 Weeks
Features 36 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Omron
Series XF2M
Package Reel - TR
Operating Temperature Range -30°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name XF2M
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number OR728TR, OR728DKR, 2266-XF2M-3615-1A, OR728CT, Q9975761, XF2M36151A
Quantity per package 1500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 939809-XF2M-3615-1A
Ultra Librarian 3D Model Ultra Librarian XF2M-3615-1A CAD Model

Description

Omron XF2M-3615-1A is a connector which is widely used in various industrial applications.

  • Supply and Demand: Balanced
  • Manufacturer: Omron
  • Category: Connectors
  • Contacts: 36 position FPC connector contacts, top and bottom 0.020" (0.50mm) surface mount, right angle
  • Package: Reel package with 1500 pcs per package
  • Production Lead Time: 22 weeks
