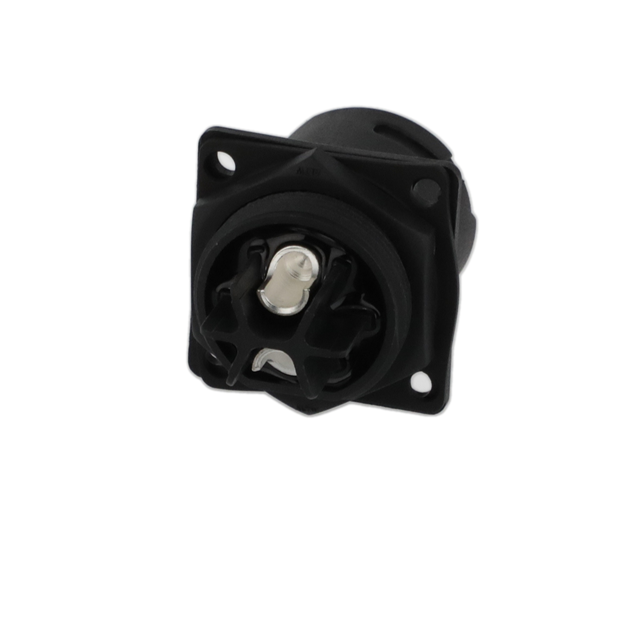

PWM-02RMFS-TS7001 Real Image
Same model may have multiple batches, images only for reference.

PWM-02RMFS-TS7001

Part No PWM-02RMFS-TS7001
Manufacturer Amphenol
Catalog Circular Connectors
Description CONN RCPT FMALE 2POS SOLDER / 2 (Power) Position Circular Connector Receptacle, Female Sockets Solder
Datasheet
PWM-02RMFS-TS7001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Amphenol LTW
Series PWM
Package Bag
Connector Type Receptacle, Female Sockets
Number of Positions 2 (Power)
Mounting Type Panel Mount
Mounting Feature Flange
Termination Solder
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Plastic
Shell Material Plastic
Color Black
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Shielding Unshielded
Current Rating (Amps) 50A
Voltage Rating 600VAC/DC
Temperature Range - Operating -40°C ~ 105°C
Insert Material Plastic
Base Product Number PWM-02RMFS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Names 1754-PWM-02RMFS-TS7001
Standard Package 1
Win Source Part Number 1090296-PWM-02RMFS-TS7001
Ultra Librarian 3D Model Ultra Librarian PWM-02RMFS-TS7001 CAD Model

Description

This circular connector is a PWM series receptacle with female sockets.

  • Series: PWM series
  • Type: Receptacle with female sockets
  • Fastening Type: Bayonet lock
  • Termination: Solder
  • Shielding: Unshielded
  • Voltage Rating: 600VAC/DC
  • Ingress Protection: IP67 (Dust tight and waterproof)
  • Material Flammability Rating: UL94 V-0
  • Orientation: Keyed
  • Mounting Feature: Flange
  • Shell Material: Plastic
  • Operating Temperature Range: -40°C to 105°C
  • Application: Perfect for applications that require a high voltage rating and waterproofing.
