Same model may have multiple batches, images only for reference.

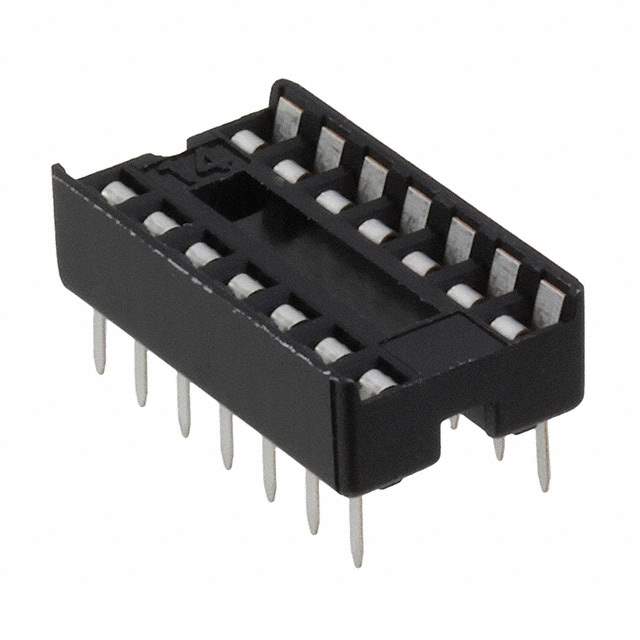

DILB14P-223TLF Real Image
Same model may have multiple batches, images only for reference.

DILB14P-223TLF

Part No DILB14P-223TLF
Manufacturer Amphenol
Catalog Sockets for ICs, Transistors
Description CONN IC DIP SOCKET 14POS TIN / 14 (2 x 7) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors
Mfr Amphenol ICC (FCI)
Package Tube
Type DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) 14 (2 x 7)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Material - Mating Copper Alloy
Mounting Type Through Hole
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post 100.0µin (2.54µm)
Contact Material - Post Copper Alloy
Housing Material Polyamide (PA), Nylon
Temperature Range - Operating -55°C ~ 105°C
Termination Post Length 0.124" (3.15mm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Contact Resistance 30mOhm
Base Product Number DILB14P
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-DILB14P-223TLF,609-4712
Standard Package 34
Win Source Part Number 1221265-DILB14P-223TLF
Ultra Librarian 3D Model Ultra Librarian DILB14P-223TLF CAD Model

Description

The DILB14P-223TLF is a 14 positions DIP socket connector from Amphenol ICC (FCI).

  • Mounting Type: Through-hole
  • Pitch: 0.1 inches (2.54 mm)
  • Row Spacing: 0.3 inches (7.62 mm)
  • Contact Material: Copper alloy with a tin finish
  • Housing Material: Polyamide (PA) Nylon, UL94 V-0 flammability rating
  • Termination Type: Solder
  • Package: Tube
  • Contact Resistance: 30mOhm
  • Current Rating: 1A
  • Temperature Range: -55°C to 105°C
  • Applications: Industrial, automotive, and consumer electronics
