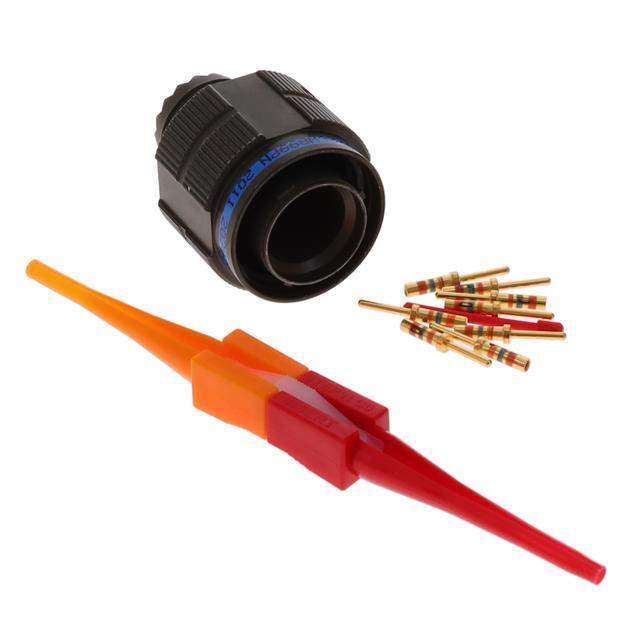

D38999/26WB99PN Real Image
Same model may have multiple batches, images only for reference.

D38999/26WB99PN

Part No D38999/26WB99PN
Manufacturer Amphenol
Catalog Circular Connectors
Description Conn MIL-DTL-38999 Circular PIN 7 POS Crimp ST Cable Mount 7 Terminal 1 Port
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Material Aluminium
Connector Type Circular, Plug
Contact Gender Male
Contact Material Copper
Contact Plating Gold
Contact Style Pin
Current Rating 7.5 A
Fastening Type Threaded
Features Shielded
Gender Male
Length 31.34 mm
Max Operating Temperature 200 °C
Military Standard MIL-DTL-38999
Min Operating Temperature -65 °C
Mount Cable, Free Hanging
Number of Contacts 7
Number of Positions 7
Orientation Straight
Plating Cadmium, Chromate
Radiation Hardening No
Ratings Environment Resistant
REACH SVHC No SVHC
RoHS Compliant
Shell Material Aluminium
Termination Crimp
Win Source Part Number 1107965-D38999/26WB99PN
Categories Circular Connectors
Manufacturer Amphenol
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian D38999/26WB99PN CAD Model

Description

This circular plug connector manufactured by Amphenol has 7 positions, is shielded, and has a crimp termination.

  • Number of Positions: 7
  • Shielded: Yes
  • Termination Type: Crimp
  • Current Rating: 7.5 A
  • Number of Contacts: 7
  • Gender: Male
  • Length: 31.34 mm
  • Contact Plating: Gold
  • Environmental Resistance: Yes
  • Military Standard: MIL-DTL-38999
  • Body Material: Aluminium
  • Mounting Type: Cable/Free Hanging
  • RoHS Compliant: Yes
  • Radiation Hardened: No
  • Minimum Operating Temperature: -65 °C
  • SVHC: No
  • Contact Style: Pin
  • Maximum Operating Temperature: 200 °C
