Same model may have multiple batches, images only for reference.

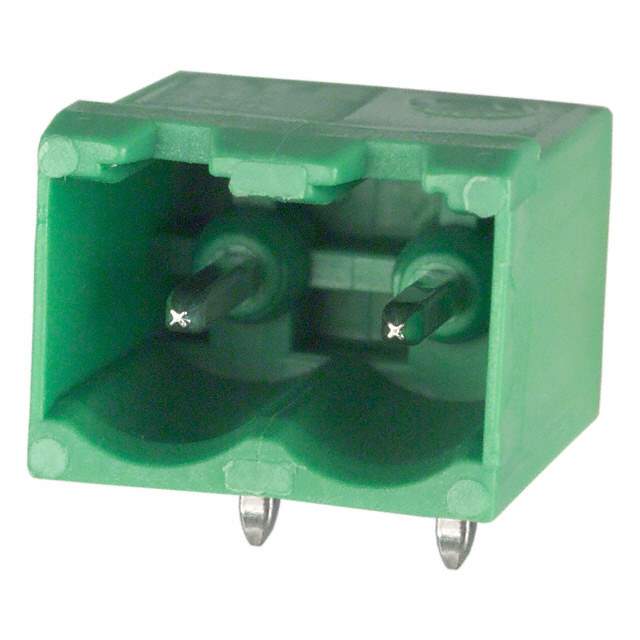

EDSTLZ950/2 Real Image
Same model may have multiple batches, images only for reference.

EDSTLZ950/2

Part No EDSTLZ950/2
Manufacturer On Shore Technology Inc.
Catalog Terminal Blocks
Description TERM BLOCK HDR 2POS 90DEG 5.08MM
Datasheet
EDSTLZ950/2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer On Shore Technology Inc.
Packaging Bulk
Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Positions Per Level 2
Number of Levels 2
Pitch 5.08mm
Header Orientation 90°, Right Angle
Mounting Solder
Voltage - UL 300V
Temperature Range - Operating -30°C to 105°C
Housing Material Polyamide (PA), Nylon
Contact Tail Length 0.138" (3.50mm)
Insulation Height 0.138" (3.50mm)
Win Source Part Number 1032064-EDSTLZ950/2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EDSTLZ950/2 CAD Model

Description

The EDSTLZ950/2 header is a male pin shrouded connector designed for use in electronic systems.

  • Positions: 2
  • Pitch: 5.08mm
  • Ideal for: right-angle connections
  • Voltage Rating: 300V
  • Housing Material: polyamide (PA), nylon
  • Insulation Height: 0.138" (3.50mm)
  • Operating Temperature Range: -30°C to 105°C
  • Manufacturer: On Shore Technology Inc.
