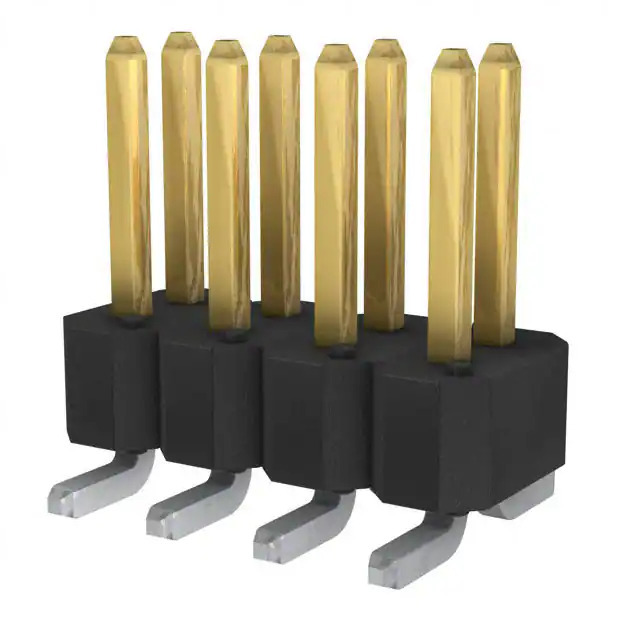

Same model may have multiple batches, images only for reference.
95278-801A08LF Amphenol
Same model may have multiple batches, images only for reference.

95278-801A08LF

Part No 95278-801A08LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER SMD 8POS 2.54MM / Connector Header Surface Mount 8 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series BERGSTIK®
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.232" (5.90mm)
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic
Features Pick and Place
Temperature Range - Operating -65°C ~ 125°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A per Contact
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post 78.7µin (2.00µm)
Applications -
Base Product Number 95278
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1366016-95278-801A08LF
Ultra Librarian 3D Model Ultra Librarian 95278-801A08LF CAD Model

Description

The 1366016-95278-801A08LF is a male pin header connector from Amphenol ICC (FCI) BERGSTIK® series.

  • Mounting Type: Surface Mount
  • Number of Rows: 2
  • Number of Positions: 8
  • Pitch: 0.100" (2.54mm)
  • Row Spacing: 0.100" (2.54mm)
  • Pick and Place: Yes
  • Current Rating: 3A per contact
  • Termination: Solder
  • Mating Contact Length: 0.232" (5.90mm)
  • Insulation Height: 0.100" (2.54mm)
  • Contact Finish: Gold, GXT™
