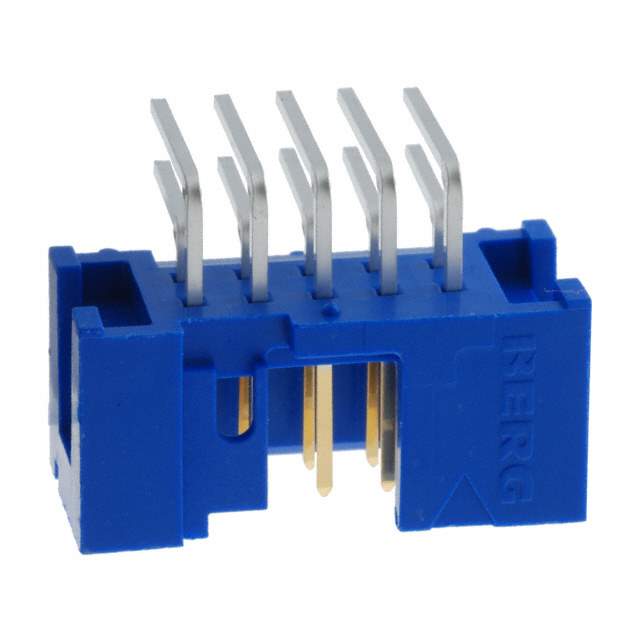

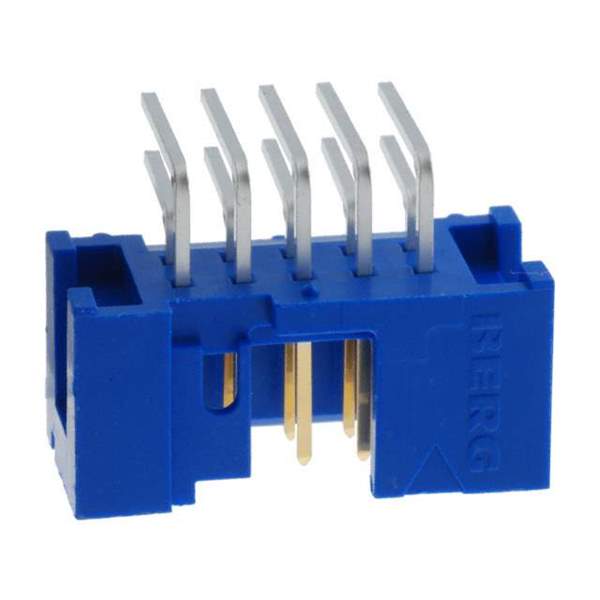

75867-101LF Real Image
Same model may have multiple batches, images only for reference.

75867-101LF

Part No 75867-101LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER R/A 10POS 2.54MM / Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Quickie™
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.236" (6.00mm)
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.362" (9.20mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic, Glass Filled
Features Keying Slot
Material Flammability Rating UL94 V-0
Insulation Color Blue
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 75867
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-1767,75867101LF,2266-75867-101LF
Standard Package 29
Win Source Part Number 1013654-75867-101LF
Ultra Librarian 3D Model Ultra Librarian 75867-101LF CAD Model

Description

The 1013654-75867-101LF is a rectangular connector header manufactured by Amphenol ICC (FCI).

  • Connector Type: Rectangular Connector Header
  • Manufacturer: Amphenol ICC (FCI)
  • Series: Quickie™
  • Positions: 10
  • Pitch: 0.100" (2.54mm)
  • Style: Board to cable/wire
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Package: Tube
  • Quantity per Tube: 29
  • Shrouding: Shrouded-4 Wall
  • Mounting Type: Through-Hole, Right-Angle
  • Operating Temperature Range: Not provided
