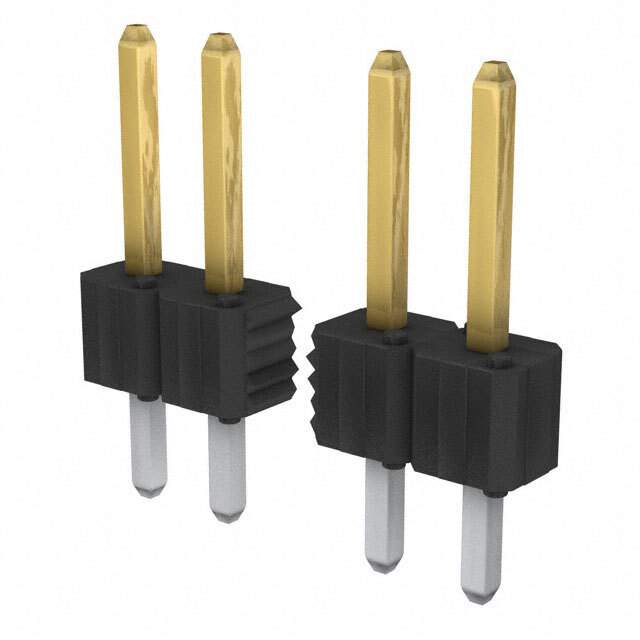

Same model may have multiple batches, images only for reference.

68001-206HLF

Name: 68001-206HLF
Brand: Amphenol
SKU: 1039800
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	68001-206HLF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 6POS 2.54MM / Connector Header Through Hole 6 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	BERGSTIK® II
Package	Bag
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.120" (3.05mm)
Overall Contact Length	0.450" (11.43mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Material	Phosphor Bronze
Temperature Range - Operating	-65°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A per Contact
Base Product Number	68001
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	609-3403,68001206HLF,68001-206HLF-ND,2266-68001-206HLF
Standard Package	500
Win Source Part Number	1039800-68001-206HLF
Ultra Librarian 3D Model	Ultra Librarian 68001-206HLF CAD Model

Alternative Products

Description

The 1039800-68001-206HLF is a male pin header from the BERGSTIK® II series.

Series: BERGSTIK® II
Pitch: 0.100" (2.54mm)
Contact Finish Thickness: 15.0µin (0.38µm)
Current Rating: 3A per contact
Temperature Range: -65°C ~ 125°C
Mounting: Through Hole
Insulation Color: Black
