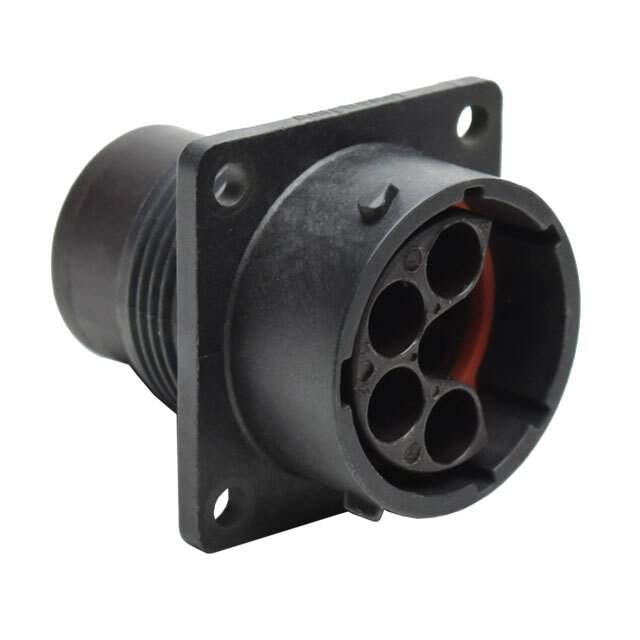

RTS016N09P03 Real Image
Same model may have multiple batches, images only for reference.

RTS016N09P03

Part No RTS016N09P03
Manufacturer Amphenol Sine Systems Corp
Catalog Circular Connectors
Description CONN RCPT HSNG MALE 9POS PNL MNT / 9 Position Circular Connector Receptacle Housing Panel Mount
Datasheet
RTS016N09P03 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr Amphenol Sine Systems Corp
Series ecomate® Aquarius™
Package Bulk
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 9
Shell Size - Insert 16-9
Contact Type Crimp
Contact Size 2.5mm (4), 16 (5)
Mounting Type Panel Mount
Mounting Feature Flange
Fastening Type Bayonet Lock
Orientation N (Normal)
Shell Material Thermoplastic
Housing Color Black
Ingress Protection IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating UL94 V-0
Shielding Unshielded
Note Contacts Not Included
Includes 2 pcs - 1 Connector, 1 Gasket
Insert Material Thermoplastic
Contact Shape Circular
Temperature Range - Operating -40°C ~ 125°C
Base Product Number RTS016
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.6000
Other Names RTS016N9P03,889-2601
Standard Package 100
Win Source Part Number 1089283-RTS016N09P03
Ultra Librarian 3D Model Ultra Librarian RTS016N09P03 CAD Model

Description

The Amphenol Sine Systems Corp ecomate® Aquarius™ RTS016N09P03 is a receptacle housing connector suitable for male pins. RTS016N09P03 is from Amphenol Sine Systems Corp

  • Fastening Type: bayonet lock
  • Protection: dust tight, water-resistant, and waterproof
  • Material: thermoplastic
  • Flammability Rating: UL94 V-0
  • Applications: harsh environments such as marine and outdoor applications
