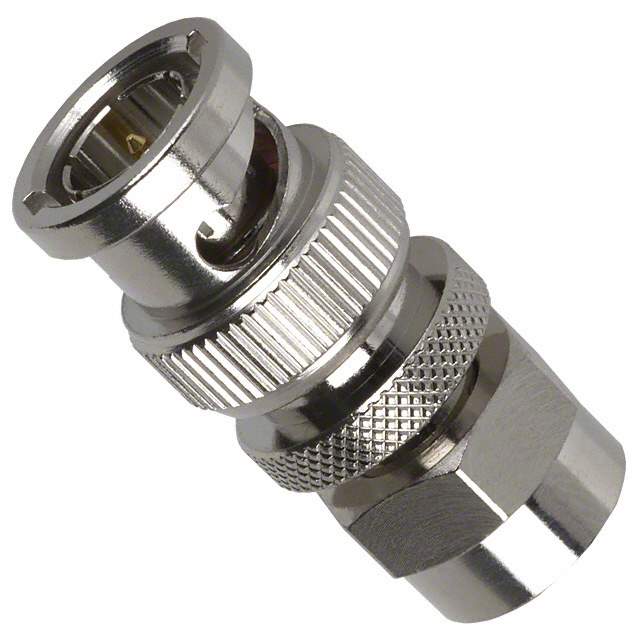

242160 Real Image1 242160 Real Image2
Same model may have multiple batches, images only for reference.
242160 Real Image1 242160 Real Image2
242160 Real Image1 242160 Real Image2
Same model may have multiple batches, images only for reference.

242160

Part No 242160
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)
Description CONN ADAPT BNC PLUG TO F PLUG / Adapter Coaxial Connector BNC Plug, Male Pin To F Plug, Male Pin 50Ohm
Datasheet
242160 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Adapters
Mfr Amphenol-RF Division
Series -
Package Bag
Adapter Type Plug to Plug
Conversion Type Between Series
Adapter Series BNC to F
Center Gender Male to Male
Convert From (Adapter End) BNC Plug, Male Pin
Convert To (Adapter End) F Plug, Male Pin
Impedance 50Ohm
Style Straight
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Fastening Type Bayonet Lock, Threaded
Frequency - Max 2 GHz
Ingress Protection -
Center Contact Plating Gold
Features -
Includes -
Body Material Brass
Body Finish Nickel
Center Contact Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles -
Insertion Loss -
Temperature Range - Operating -65°C ~ 165°C
Base Product Number 2421
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Standard Package 1 pcs
Win Source Part Number 1380694-242160
Ultra Librarian 3D Model Ultra Librarian 242160 CAD Model

Description

The BNC to F Plug Adapter is a versatile connector that allows you to convert from BNC Plug (male pin) to F Plug (male pin). It is commonly used in coaxial connections for RF applications.

  • Connector Type: Adapter
  • Convert From (Adapter End): BNC Plug, Male Pin
  • Convert To (Adapter End): F Plug, Male Pin
  • Fastening Type: Bayonet Lock, Threaded
  • Body Material: Brass
  • Body Finish: Nickel
  • Center Contact Material: Brass
  • Center Contact Plating: Gold
  • Impedance: 50Ohm
  • Frequency - Max: 2 GHz
  • Operating Temperature: -65°C to 165°C
