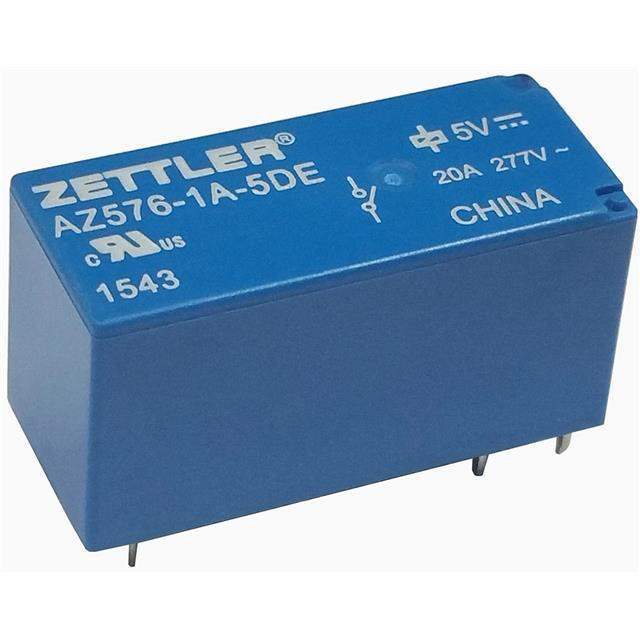

AZ576-1A-5DE American Zettler
Same model may have multiple batches, images only for reference.

AZ576-1A-5DE

Part No AZ576-1A-5DE
Manufacturer American Zettler, Inc.
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 20A 5V
Datasheet
AZ576-1A-5DE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307955-AZ576-1A-5DE
Category Relays >Power Relays, Over 2 Amps
Mfr American Zettler
Packaging  Tray
Part Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 20 A
Switching Voltage 480VAC, 30VDC - Max
Coil Current 80 mA
Ultra Librarian 3D Model Ultra Librarian AZ576-1A-5DE CAD Model

Description

  • 20 Amp switching capability
  • Available in SPST-NO and SPDT versions
  • Dielectric strength of 5000 VAC
  • Ambient temperature up to 105°C (221°F)
  • Epoxy sealed versions available
  • Compact size, low seated height of 15.3 mm
  • UL / CUR file E44211
  • TÜV: R50400691
