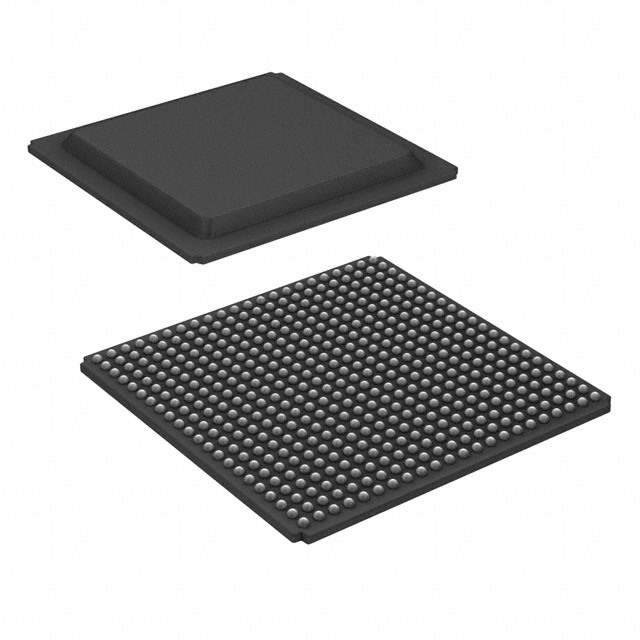

XC7S75-2FGGA484I Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr AMD
Series Spartan®-7
Package Tray
Product Status Active
Programmable Not Verified
Number of LABs/CLBs 6000
Number of Logic Elements/Cells 76800
Total RAM Bits 4331520
Number of I/O 338
Voltage - Supply 0.95V ~ 1.05V
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 100°C (TJ)
Package / Case 484-BGA
Supplier Device Package 484-FPBGA (23x23)
Base Product Number XC7S75
Standard Package 1 pcs
MSL Level 3 (168 Hours)
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 846711-XC7S75-2FGGA484I
Ultra Librarian 3D Model Ultra Librarian XC7S75-2FGGA484I CAD Model

Description

The XC7S75-2FGGA484I is an embedded FPGA from the Spartan-7 series.

  • Series: Spartan-7
  • Category: Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
  • Number of LABs/CLBs: 6000
  • Number of Logic Elements/Cells: 76,800
  • Voltage Supply: 0.95V to 1.05V
  • Mounting Type: Surface Mount
  • Package: 484-BGA
  • Operating Temperature: -40°C to 100°C
  • Manufacturer: AMD
  • Standard Package: 1 piece
  • Status: Active
