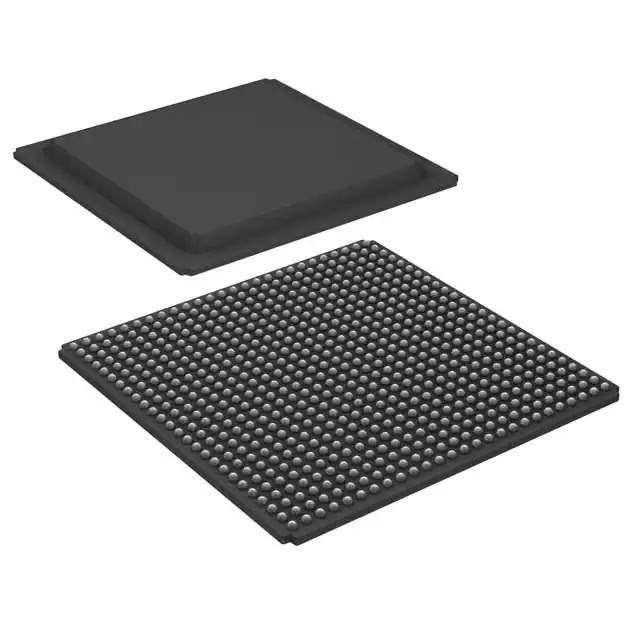

XC3SD1800A-4FG676I Real Image
Same model may have multiple batches, images only for reference.

XC3SD1800A-4FG676I

Part No XC3SD1800A-4FG676I
Manufacturer Amd
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 519 I/O 676FCBGA / Spartan?-3A DSP Field Programmable Gate Array (FPGA) IC 519 1548288 37440 676-BGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr AMD
Series Spartan®-3A DSP
Package Tray
Product Status Active
Programmable Not Verified
Number of LABs/CLBs 4160
Number of Logic Elements/Cells 37440
Total RAM Bits 1548288
Number of I/O 519
Number of Gates 1800000
Voltage - Supply 1.14V ~ 1.26V
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 100°C (TJ)
Package / Case 676-BGA
Supplier Device Package 676-FBGA (27x27)
Base Product Number XC3SD1800
Standard Package 40 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 846808-XC3SD1800A-4FG676I
Ultra Librarian 3D Model Ultra Librarian XC3SD1800A-4FG676I CAD Model

Description

The XC3SD1800A-4FG676I is an embedded FPGA from the Spartan-3A DSP series.

  • LABs/CLBs: 4160
  • Logic Elements/Cells: 37,440
  • Voltage Supply: 1.14V to 1.26V
  • Mounting: surface mountable
  • Package: 676-BGA package
  • Operating Temperature: -40°C to 100°C
