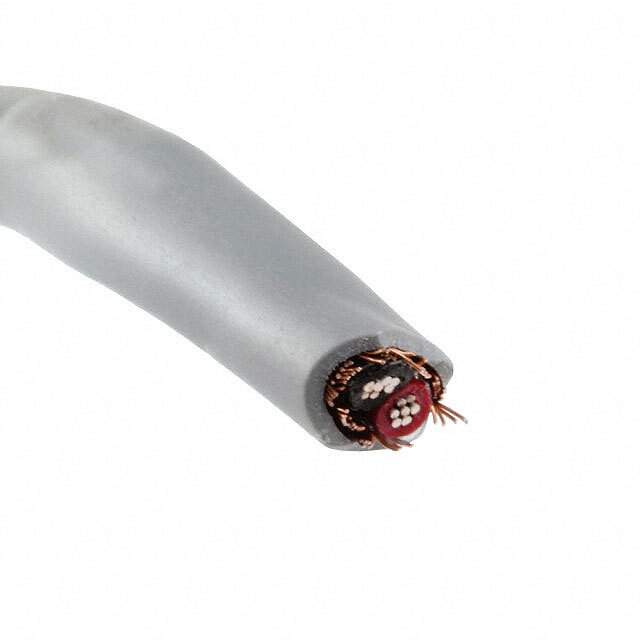

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires>Multiple Conductor Cables
Mfr Alpha Wire
Package Spool
Cable Type Multi-Conductor
Number of Conductors 2
Wire Gauge 22 AWG
Conductor Strand 7/28
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.189" (4.80mm)
Shield Type Braid
Length 1000.0' (304.8m)
Jacket Color Slate
Ratings UL Style 2095
Voltage 300 V
Temperature Range - Operating -20°C ~ 80°C
Jacket (Insulation) Thickness 0.0200" (0.508mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Material Copper, Tinned
Shield Coverage 85%
Base Product Number M3202
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names M3202 SL001-ND,M3202SL001
Standard Package 1
Win Source Part Number 1206178-M3202 SL001
Ultra Librarian 3D Model Ultra Librarian M3202 SL001 CAD Model

Description

The Alpha Wire M3202 SL001 is a 22 AWG multi-conductor cable with a length of 1000.0' (304.8m).

  • AWG: 22
  • Length: 1000.0' (304.8m)
  • Voltage Rating: 300V
  • UL Style: 2095
  • Conductor Material: Copper, tinned
  • Conductor Strand: 7/28
  • Shield Material: Copper, tinned
  • Shield Coverage: 85%
  • Jacket (Insulation) Material: Poly-Vinyl Chloride (PVC)
  • Jacket (Insulation) Diameter: 0.189" (4.80mm)
  • Jacket (Insulation) Thickness: 0.0200" (0.508mm)
  • Shield Type: Braid
  • Jacket Color: Slate
  • Operating Temperature: -20°C ~ 80°C
  • Manufacturer: Alpha Wire
  • Packaging: Spool
