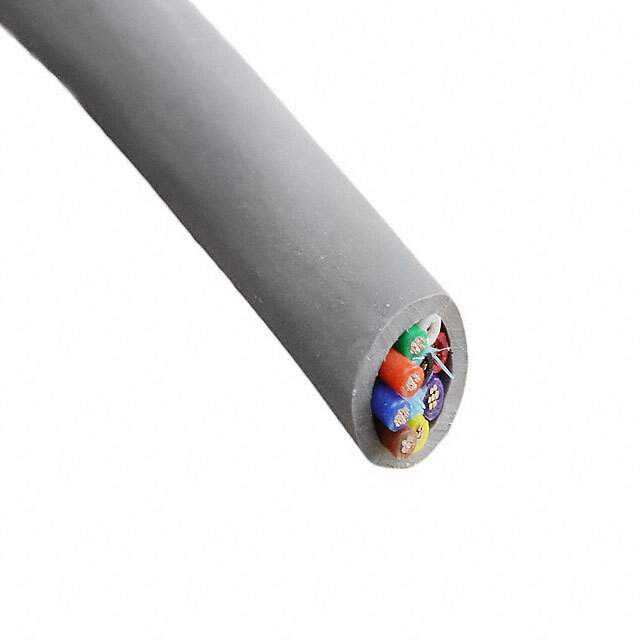

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires>Multiple Conductor Cables
Mfr Alpha Wire
Package Spool
Cable Type Multi-Conductor
Number of Conductors 9
Wire Gauge 24 AWG
Conductor Strand 7/32
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.236" (5.99mm)
Shield Type Foil
Length 1000.0' (304.8m)
Jacket Color Slate
Features Drain Wire
Voltage 300 V
Temperature Range - Operating -20°C ~ 80°C
Usage Computer
Jacket (Insulation) Thickness 0.0350" (0.889mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Shield Coverage 100%
Base Product Number 1012409
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names 1012409 SL199-ND,1012409SL199
Standard Package 1,000
Win Source Part Number 1112316-1012409 SL199
Ultra Librarian 3D Model Ultra Librarian 1012409 SL199 CAD Model

Description

The Alpha Wire 1112316-1012409 SL199 is a 1000-foot spool of multi-conductor cable with 9 conductors.

  • Length: 1000-foot
  • Conductors: 9
  • Voltage Rating: 300V
  • Shield Coverage: 100%
  • Conductor Material: Tinned copper
  • Conductor Strand: 7/32
  • Insulation: Poly-Vinyl Chloride (PVC) jacket
  • Jacket Diameter: 0.236 inches (5.99mm)
  • Jacket Thickness: 0.0350 inches (0.889mm)
  • Shield Material: Aluminum
  • Shield Type: Foil
  • Temperature Range: -20°C to 80°C
  • Application: Suitable for use in computers
  • Cross-Reference: 1012409-SL199 and 1012409SL199
