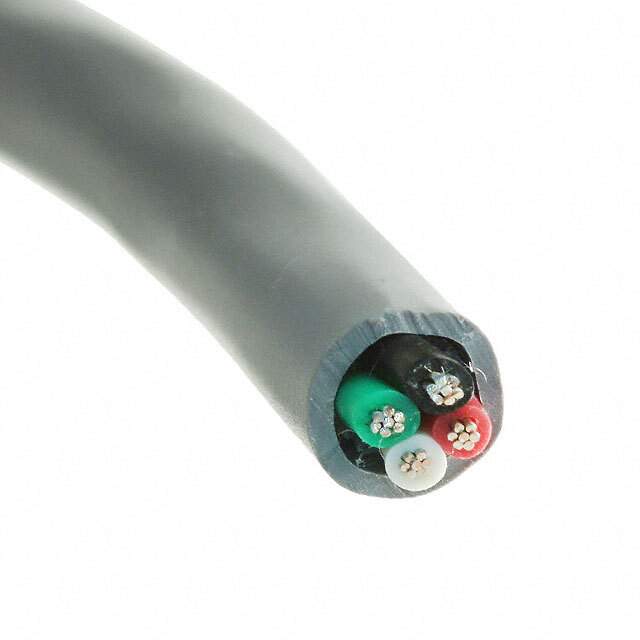

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires>Multiple Conductor Cables
Mfr Alpha Wire
Package Spool
Cable Type Multi-Conductor
Number of Conductors 4
Wire Gauge 20 AWG
Conductor Strand 7/28
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.219" (5.56mm)
Length 500.0' (152.4m)
Jacket Color Slate
Ratings UL Style 2464
Voltage 300 V
Temperature Range - Operating -20°C ~ 80°C
Jacket (Insulation) Thickness 0.0320" (0.813mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Base Product Number M13404
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names M13404SL002,M13404 SL002-ND
Standard Package 1
Win Source Part Number 966977-M13404 SL002
Ultra Librarian 3D Model Ultra Librarian M13404 SL002 CAD Model

Description

The 966977-M13404 SL002 is a multi-conductor cable with a wire gauge of 20 AWG and a length of 500.0' (152.4m).

  • Wire Gauge: 20 AWG
  • Length: 500.0' (152.4m)
  • Voltage Rating: 300V
  • Standard Package: 1
  • Number of Conductors: 4
  • UL Style: 2464
  • Shielding: Yes
  • Jacket Material: Poly-Vinyl Chloride (PVC)
  • Jacket Thickness: 0.0320" (0.813mm)
  • Package: Spool
  • Temperature Range: -20°C to 80°C
  • ECCN: EAR99
  • HTSUS: 8544.49.3080
