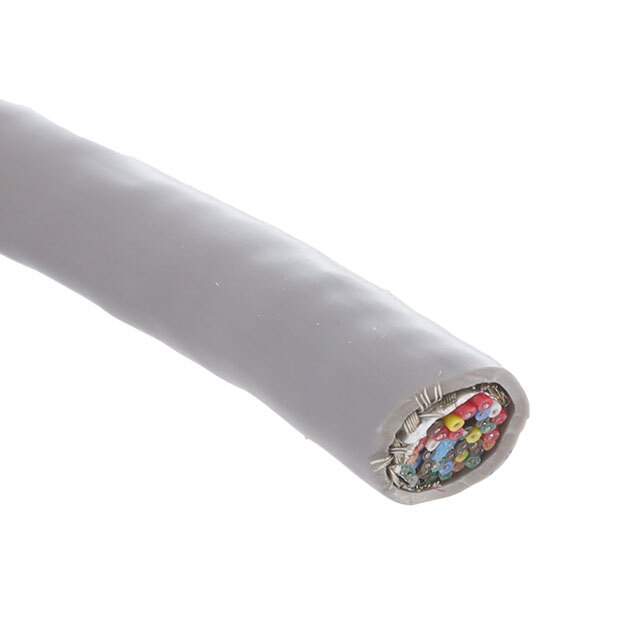

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Cables, Wires
Manufacturer Alpha Wire
Status Active
Cable Type Multi-Pair
Number of Conductors 36 (18 Pair Twisted)
Wire Gauge 22 AWG
Conductor Strand 7/28
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.500" (12.70mm)
Shield Type Foil, Braid
Length 500.0' (152.4m)
Jacket Color Slate
Ratings UL Style 2464
Features Drain Wire
Voltage 300V
Temperature Range - Operating -20°C to 80°C
Jacket (Insulation) Thickness 0.032" (0.81mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Shield Coverage 100%, 65%
Win Source Part Number 1006652-6383 SL002
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 6383 SL002 CAD Model

Description

This electronic component is a multi-pair cable from Alpha Wire with the Win Source Part Number 1006652-6383 SL002.

  • Conductors: 36 (18 pair twisted)
  • Wire Gauge: 22 AWG
  • Shielding: Aluminum and copper, tinned
  • Voltage Rating: 300V
  • UL Style: 2464
  • Shield Coverage: 100%, 65%
  • Integration: Easy to integrate
  • Features: Wide range of features
  • Supply and Demand Status: Currently balanced
  • Suitability: Suitable for use in different applications
