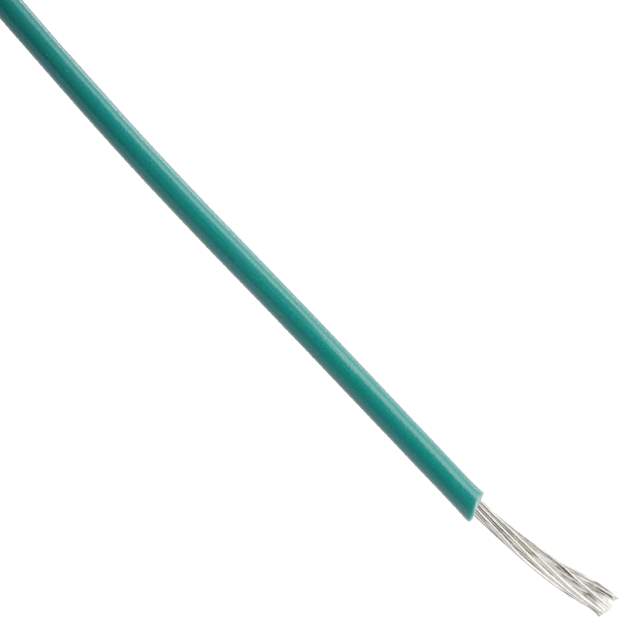

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires>Single Conductor Cables (Hook-Up Wire)
Mfr Alpha Wire
Package Spool
Cable Type Hook-Up
Wire Gauge 18 AWG
Conductor Strand 16/30
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.079" (2.01mm)
Jacket (Insulation) Thickness 0.016" (0.41mm)
Length 1000.0' (304.8m)
Voltage 300V
Temperature Range - Operating -40°C ~ 105°C
Jacket Color Green
Ratings ISO 10993, UL Style 1007/1569
Features Biological Compatibility
Base Product Number 3055
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names 3055-1000-GREEN,A2064G-1000,3055GR001
Standard Package 1
Win Source Part Number 1146630-3055 GR001
Ultra Librarian 3D Model Ultra Librarian 3055 GR001 CAD Model

Description

The Alpha Wire 1146630-3055 GR001 is a spool of single conductor cable that has biological compatibility features.

  • Conductor Material: Copper, Tinned
  • Conductor Strand: 16/30
  • Jacket Insulation Material: Poly-Vinyl Chloride (PVC)
  • Jacket Color: Green
  • Insulation Thickness: 0.016 inches
  • Cable Type: Hook-Up
  • Voltage Rating: 300V
  • Temperature Range: -40°C to 105°C
  • Cable Gauge: 18 AWG
  • Length: 1000.0 feet or 304.8 meters
