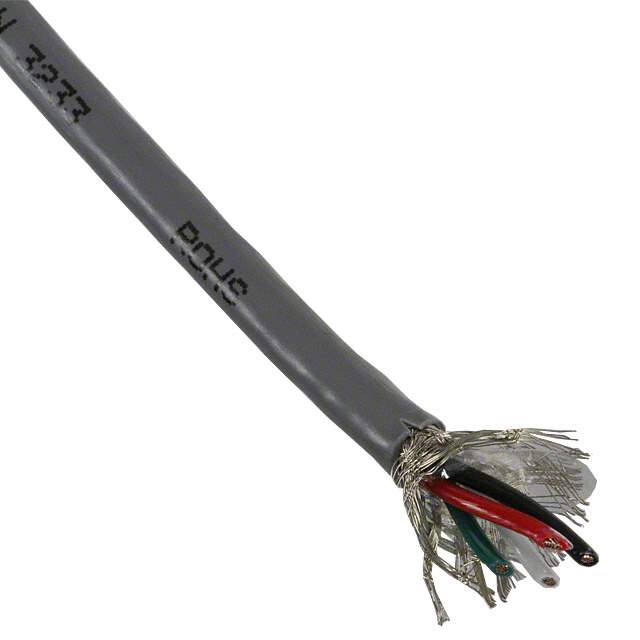

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires>Multiple Conductor Cables
Mfr Alpha Wire
Package Spool
Cable Type Multi-Pair
Number of Conductors 8 (4 Pair Twisted)
Wire Gauge 18 AWG
Conductor Strand 16/30
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.397" (10.08mm)
Shield Type Foil
Length 1000.0' (304.8m)
Jacket Color Slate
Features Drain Wire
Voltage 300 V
Temperature Range - Operating -20°C ~ 80°C
Usage Communication, Control
Jacket (Insulation) Thickness 0.0400" (1.016mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Shield Coverage 100%
Base Product Number 2244C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names 2244C SL001-ND,2244CSL001
Standard Package 1
Win Source Part Number 1035847-2244C SL001
Ultra Librarian 3D Model Ultra Librarian 2244C SL001 CAD Model

Description

The Alpha Wire 1035847-2244C SL001 is a Multi-Pair cable with a length of 1000.0' (304.8m) and 8 conductors. Alpha Wire 1035847-2244C SL001

  • Cable Type: Multi-Pair
  • Length: 1000.0' (304.8m)
  • Conductors: 8
  • Wire Gauge: 18 AWG
  • Voltage Rating: 300V
  • Drain Wire: Yes
  • Shielded: Yes
  • Shield Material: Aluminum
  • Shield Type: Foil
  • Shield Coverage: 100%
  • Jacket Insulation Material: Poly-Vinyl Chloride (PVC)
  • Jacket Color: Slate
  • Applications: Communication and Control
