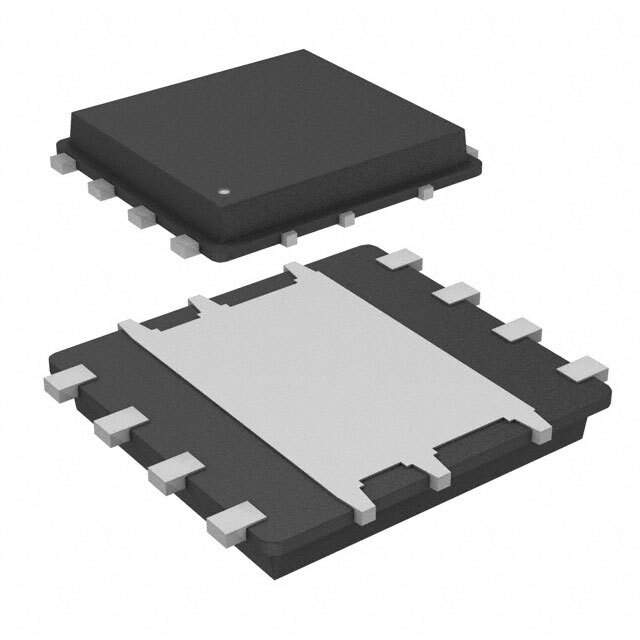

AON6810 Real Image
Same model may have multiple batches, images only for reference.

AON6810

Part No AON6810
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description DFN5X6 PACKAGE MARKING DESCRIPTION
Datasheet
AON6810 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
FET Type 2 N-Channel (Dual) Common Drain
FET Feature Logic Level Gate
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 25A
Rds On (Maximum) @ Id, Vgs 4.4 mOhm @ 20A, 10V
Vgs(th) (Maximum) @ Id 2.2V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 34nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 1720pF @ 15V
Power - Max 4.1W
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Package 8-SMD, Flat Lead Exposed Pad
Manufacturer Package 8-DFN-EP (5.2x5.55)
Win Source Part Number 1144983-AON6810
Manufacturer Homepage www.aosmd.com
Popularity Medium
Supply and Demand Status Balance
Family Name AON6810
Introduction Date June 02, 2013
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian AON6810 CAD Model

Description

The AON6810 is a dual N-Channel FET designed by Alpha & Omega Semiconductor Inc. for use in Discrete Semiconductor Products.

  • Maximum Continuous Drain Current: 25A
  • Maximum Power: 4.1W
  • Drain Source Voltage: 30V
  • Gate Charge: 34nC @ 10V
