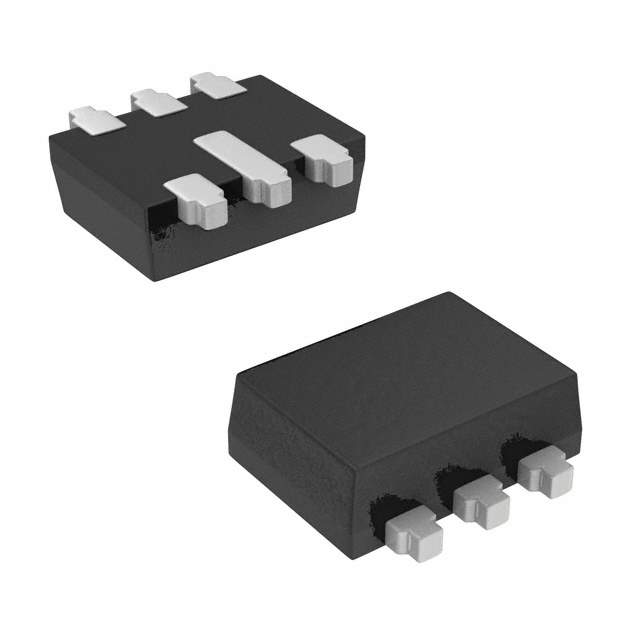

AO5804EL Real Image
Same model may have multiple batches, images only for reference.

AO5804EL

Part No AO5804EL
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH SC89-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Part Status Obsolete(EOL)
FET Type 2 N-Channel (Dual)
FET Feature Standard
Drain Source Voltage 20V
Current - Continuous Drain (Id) @ 25°C 500mA
Rds On (Maximum) @ Id, Vgs 550 mOhm @ 500mA, 4.5V
Vgs(th) (Maximum) @ Id 1V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 1nC @ 4.5V
Input Capacitance (Ciss) (Maximum) @ Vds 45pF @ 10V
Power - Max 280mW
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Package SOT-563, SOT-666
Manufacturer Package SC-89-6
Manufacturer Homepage www.aosmd.com
Win Source Part Number 751849-AO5804EL
Popularity Medium
Supply and Demand Status Balance
Family Name AO5804EL
Country of Origin China
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian AO5804EL CAD Model

Description

The Alpha & Omega Semiconductor Inc. is a medium popularity product with a balanced supply and demand status.

  • Manufacturer Part Number: 751849-AO5804EL
  • FET Type: 2 N-Channel (Dual)
  • FET Feature: standard
  • Current - Continuous Drain (Id) @ 25°C: 500mA
  • Power - Max: 280mW
  • Drain-Source Voltage: 20V
  • Gate-Source Voltage Threshold: 1V @ 250μA
  • Maximum Input Capacitance: 45pF @ 10V
  • Maximum Rds On: 550 mOhm @ 500mA, 4.5V
  • Package: SOT-563, SOT-666
  • Manufacturer Package: SC-89-6
  • Status: obsolete
  • Estimated EOL Date: obsolete
  • Manufacturer Homepage: www.aosmd.com
